H8P HDMI 4G encoder With P2P
H8P HDMI 4G encoder With P2P
H8P HDMI 4G encoder With P2P
H8P HDMI 4G encoder With P2P
H8P HDMI 4G encoder With P2P

H8P HDMI 4G encoder With P2P

Want create site? Find Free WordPress Themes and plugins.                Product Description 1-channel HD HDMI input, 1channel LINE-IN audio. Dual streams output. H.265/ H.264 format, Audio:

Protocol : HTTP, RTSP, RTP, TCP, RTMP, HLS, UDP multicast, unicast

Coding standard : H.265 / H.264

Encoded size : Up to 1920*1080 60FPS

Video bit rate : 5-60 fps

Phone:+86 18926159746 020-36164006
DESCRIPTION FEATURES







Product Description

1-channel HD HDMI input, 1channel LINE-IN audio.

Dual streams output. H.265/ H.264 format, Audio: MP3, AAC, G.711 format.

Configuration could be freely adjusted according to the need.

Support HTTP / RTSP / RTP/ TCP / RTMP / UDP / ONVIF / HLS protocols.

Red indicator: power. Yellow: Streaming status. Green: Network

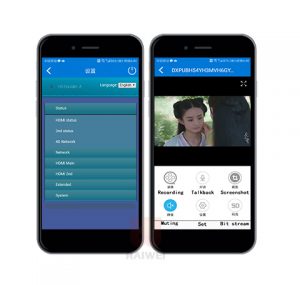

APP  Management : IOS/Andriod ,Support P2P

Andriod Link:  LiveX   IOS APP Store:  LiveX



Key features

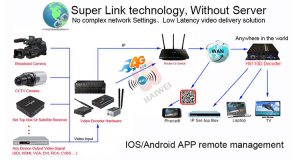

  1. HDMI to 3g/ 4g/ wifi/ LAN.
  2. Standard hot shoe
  3. Resolution: up to 1920x1080p 60 (customized)
  4. Supports WINDOWS ,LINUX,MAC OS
  5. Support RTSP/ RTP/ RTMP/ HTTP/ ONVIF/ HLS/ UDP unicast and multicast protocol
  6. Support Main TS stream and the sub TS stream  use in different network protocols for transmission
  7. Encoding level: 1, 2, 3, 4 and 5 (the higher the level, the larger of the code flow fluctuation ratio )
  8. Coding Standard: Base line profile/ main profile/high profile, H.265 main profile:
  9. Audio: MP3, AAC, G.711, sampling rate: 32000,44100, etc, encoded audio bit rate: 48K, 64K, 96K, 128K, 160K, 192K, 256K
  10. Video bitrate Control: CBR / VBR 16KBIT / S ~ 12MBIT / S
  11. Video packaging: A mode: FFMPEG, B mode: VLC
  12. Transmission: TCP, UDP, 100M/ 1000M (RJ45 Duplex network port)
  13. Support WEB access in Chinese/ English, passwords change, WAN remote management (WEB)
  14. Support Text/ image OSD, images superimposing.
  15. Adjustable coordinates: 1920×1080; the font size: 8 to 72.
  16. Supports automatically obtain IP (DHCP), support One-key recovery, upgrade and remote maintenance.
  17. Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
  18. Support build-in or external audio input, support left and right sound channel, Support audio gain, turn volume individually.
  19. Support encoding without video signal;
  20. Take effect immediately when applied the settings, don’t need to restart.
  21. Support one-key recovery to default setting.
  22. Low power consumption design,  Battery capacity:10000MHA



Specification

Product model H8P 3G/4G+ LAN+ WiFi+ battery HDMI Encoder
Input 1Channel HDMI input, 1 Channel line in audio
Output 1 channel IP signal output
Video Input resolution Up to 1920x1080p 60FPS, standard HDMI resolution
Coding standard H.265/ H.264
Coding level H.265 MAIN PROFILE
H.264 BASELINE PROFILE
H.264 MAIN PROFILE
H.264 HIGH PROFILE
Encoded size 640*360~1920*1080(Can customize)
Video bit rate Rate control: CBR/VBR 16KBIT/S~12MBIT/S
Video frame rate 5- 60 fps
OSD Text, Image
Audio Input selection 1 channel embedded audio hdmi, 1 channel 3.5MM independent audio, support audio gain
Audio coding AAC/ MP3/ G.711
Audio bit rate 64Kb/s~384Kb/s
Sampling rate 32000、44100,48000 etc
IP output 1 RJ 100M / 1000M adaptive Ethernet port, dual-stream( H.265/264 TS stream)
System Network protocol HTTP, RTSP, RTMP, ONVIF, HLS, UDP multicast, unicast
Configuration management User interface, remote upgrade, Andriod APP, multi-one management platform
  Power supply 12V~2A
power consumption 5W
Size 103mm * 70mm * 25mm(L*W*H)
Operating temperature -20℃+ 60℃
Working humidity <90%,Non-condensing
Weight 0.4KG

Haiwei reserves the right to adjust the product parameters, if you have any questions please contact us to check
