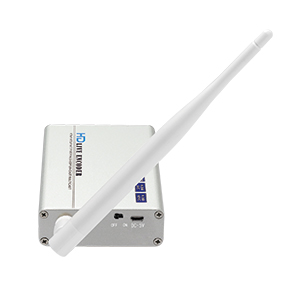

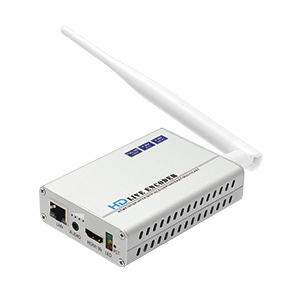

H8118M HDMI WIFI battery h 264 encoder hd encoders
H8118M HDMI WIFI battery h 264 encoder hd encoders
H8118M HDMI WIFI battery h 264 encoder hd encoders
H8118M HDMI WIFI battery h 264 encoder hd encoders

H8118M HDMI WIFI battery h 264 encoder hd encoders

Want create site? Find Free WordPress Themes and plugins.   Product Description 1-channel HD HDMI input, 1-channel audio input. Dual streams output.H.264 format, Audio: MP3, AAC, G.711 format. Configuration could be freely adjusted acc

Protocol : HTTP, RTSP, RTP, TCP, RTMP, RTMPS, HLS, UDP multicast, unicastS

Coding standard : H.265 / H.264

Encoded size : Up to 1920*1080 60FPS

Video bit rate : 5-60 fps

Phone:+86 18926159746 020-36164006
DESCRIPTION FEATURES



Product Description

1-channel HD HDMI input, 1-channel audio input.

Dual streams output.H.264 format, Audio: MP3, AAC, G.711 format.

Configuration could be freely adjusted according to the need.

Support HTTP / RTSP / RTP/ TCP / RTMP / RTMPS / FLV / UDP / ONVIF / HLS protocols.

Red indicator: power. Yellow: Streaming status. Green: Network





  • Aircraft-grade aluminum technology Shell.
  • Support 1920x1080p/1920x1080i/1280x720p/720*576i/720*576p/640*480i solutions (customized)
  • Support HDMI input,H.265 latest architecture
  • Supports WINDOWS and LINUX etc
  • Support multiple devices display on a computer at the same time
  • Support RTSP/RTP/RTMP/HTTP/UDP/ONVIF/HLS unicast and multicast protocol (RTMP support adding users and changing passwords)
  • Support Main TS stream and the sub TS stream  use in different network protocols for transmission ,H264/H265
  • Encoding level: 1, 2, 3, 4 and 5 (the higher the level ,the larger of the code flow fluctuation ratio )
  • Coding Standards BASELINE PROFILE / MAIN PROFILE / HIGH PROFILE, H.265:audio MP3, AAC, sampling rate: 32000,44100, etc., encoded audio bit rate: 48K, 64K, 96K, 128K, 160K, 192K, 256K
  • Video packaging: A mode: FFMPEG, B mode: VLC
  • Compatible with Wowza/FMS/RED5 streaming media server etc, work in with streaming media server to push the streaming , to achieve a live streaming
  • Rate Control CBR / VBR 16KBIT / S ~ 12MBIT / S
  • Video packaging: A mode: FFMPEG, B mode: VLC
  • Transmission: TCP, UDP, 1000M (RJ45 Duplex network port)
  • Support WEB access in Chinese/English, passwords changing, WAN remote management (WEB)
  • Support OSD in Chinese/ English, support OSD rolling, images superimposing, support adding LOGO ,Characters and symbols;

Adjustable coordinates: 1920×1080; The font size resolution: 8 to 72.

  • Support DHCP gaining IP automatic ,support One-key recovery, upgrade and remote maintenance
  • Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
  • Support build-in or external methods , support left and right sound channel , Support audio gain ,be able to turn volume individually
  • Support coding without video signal;
  • Complete the setting effect immediately, don’t need to restart
  • Support one-key recovery of the default configuration
  • Support set-top box decoder
  • The low power consumption design
  • Battery power, can working 3 to 4 hours1



Specification

Product model H8118M Lithium+Wifi+ HDMI encoder
Input 1 HDMI input, 1 3.5MM channel audio input
Output 1 channel IP signal output
Video Input resolution 1920x1080p/1920x1080i/1280x720p/720*576i/720*576p /640*480iAnd other conventional resolution
Coding standard H.265/H.264
Coding level H.265 main profile



H.264 BASELINE PROFILE

H.264 MAIN PROFILE

H.264 HIGH PROFILE





Encoded size

640*360~1920*1080(Can customize)
Video bit rate Rate control: CBR/VBR 16KBIT/S~12MBIT/S
Video frame rate 30/60
OSD Character, images
Audio Input selection 1 channel embedded audio hdmi, 1 channel 3.5MM independent audio
Audio coding AAC/MP3/G.711
Audio bit rate 64Kb/s~384Kb/s
Sampling rate 32000、44100 48000etc
IP



output

1 RJ 100M / 1000M adaptive Ethernet port, TS stream standard, dual-stream, ONVIF protocol
System Network protocol Supports HTTP, RTSP, RTMP, UDP, HLS multicast, unicast
Configuration management Support IE configuration, remote upgrade
The common use Power supply 12V~2A
power consumption 5W
Size 100mm * 70mm * 25mm(length*width*height)
Operating temperature -20℃+ 60℃
Working humidity <90%,Non-condensing
Weight 0.18KG

Haiwei reserves the right to adjust the product parameters, if you have any questions please contact us to check
