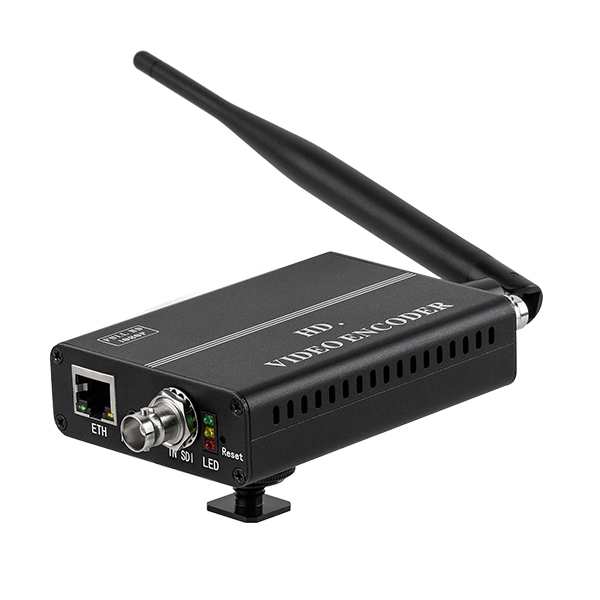

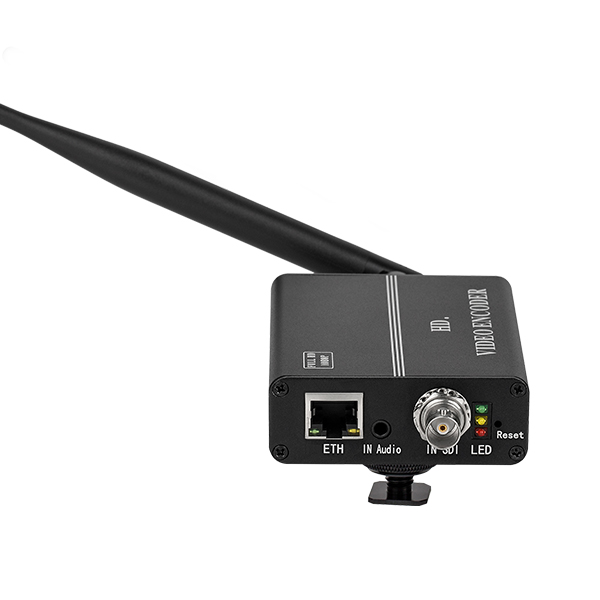

H8114W H.264 SDI WiFi h 264 encoder hd encoders
H8114W H.264 SDI WiFi h 264 encoder hd encoders
H8114W H.264 SDI WiFi h 264 encoder hd encoders
H8114W H.264 SDI WiFi h 264 encoder hd encoders

H8114W H.264 SDI WiFi h 264 encoder hd encoders

Want create site? Find Free WordPress Themes and plugins.                                                    Product D

Protocol : HTTP, RTSP, RTP, TCP, RTMP, RTMPS ,HLS, UDP multicast, unicast

Coding standard : H.264

Encoded size : Up to 1920*1080 60FPS

Video bit rate : 5-60 fps

Phone:+86 18926159746 020-36164006
DESCRIPTION FEATURES



Product Description

1-channel HD SDI input, 1-channel audio input.

Dual streams output.H.264 format, Audio: MP3, AAC, G.711 format.

Configuration could be freely adjusted according to the need.

Support HTTP / RTSP / RTP/ TCP / RTMP / RTMPS / FLV / UDP / ONVIF / HLS protocols.

Red indicator: power. Yellow: Network Green: Streaming status.





  • The embedded hardware encoding,support WIFI
  • Support H.264 BASELINE PROFILE / MAIN PROFILE / HIGH PROFILE
  • Support multiple devices display on a computer at the same time
  • Support network directly connected, don’t need match HD collection card.
  • Rate Control CBR / VBR 16KBIT / S ~ 12MBIT / S
  • The network interface uses a 1000M full duplex mode
  • 1 channel SDI input, 1 channel 3.5MM independent audio interface input, support HDMI / VGA / CVBS convert to SDI input, support audio gain
  • Support SD SDI input and support up to 720P, 1080P HD video input
  • Support RTSP/RTP/RTMP/HTTP/UDP/ONVIF/HLS unicast and multicast protocol(RTMP support adding users and passwords changing) Support DHCP protocol, ONVIF protocol, support Blue-ray
  • Compatible with Wowza/FMS/RED5 streaming media server etc, work in with streaming media server to push the streaming , to achieve a live streaming
  • Support Main TS stream and the sub TS stream  use in different network protocols for transmission(Multi-rate multi-protocol support)
  • Rate Control CBR / VBR 16KBIT / S ~ 12MBIT / S
  • Video packaging: A mode: FFMPEG, B mode: VLC
  • Support streaming resolution output settings custom
  • Transmission: TCP, UDP, 1000M (RJ45 Duplex network port)
  • Support streaming add watermark (OSD), XY axis, the font can be set;
  • Support WEB access in Chinese/English, passwords changing, WAN remote management (WEB)
  • Support DHCP gaining IP automatic ,support One-key recovery, upgrade and remote maintenance
  • Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
  • Support build-in or external methods , support left and right sound channel , Support audio gain ,be able to turn volume individually
  • Support coding without video signal; Complete the setting effect immediately, don’t need to restart
  • Support one-key recovery of the default configuration
  • Support set-top box decoder
  • The low power consumption design

Specification

Product model H8114W  SDI+WIFI HD encoder
Input 1 SDI input, 1 3.5MM channel audio input
Output 1 channel IP signal output
Video Input resolution Up to 1920x1080p 60FPS, standard HDMI resolution
Coding standard H.264
Coding level     H.264 BASELINE PROFILE



H.264 MAIN PROFILE

H.264 HIGH PROFILE





Encoded size

640*360~1920*1080
Video bit rate Rate control: CBR/VBR 16KBIT/S~12MBIT/S
Video frame rate 5- 60 fps
OSD Text, Image
Audio Input selection 1 channel embedded audio hdmi, 1 channel 3.5MM independent audio support audio gain
Audio coding AAC/MP3/G.711
Audio bit rate 64Kb/s~384Kb/s
Sampling rate 32000、44100 ,48000etc
IP



output

1 RJ 100M / 1000M adaptive Ethernet port, dual-stream( H.265/264 TS stream)
System Network protocol HTTP, RTSP, RTMP, ONVIF, HLS, UDP multicast, unicast
Configuration management User interface, remote upgrade, Andriod APP, multi-one management platform
The common use Power supply 12V~2A
power consumption 5W
Size 100mm * 70mm * 25mm(length*width*height)
Operating temperature -20℃+ 60℃
Working humidity <90%,Non-condensing
Weight 0.18KG
Our company reserves the right to adjust the product parameters, if you have any questions please contact us to check
