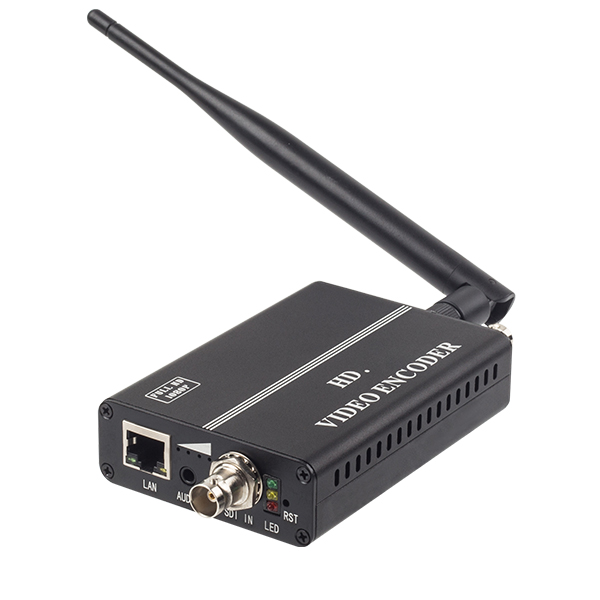

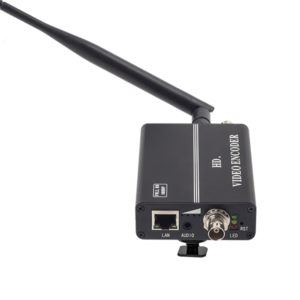

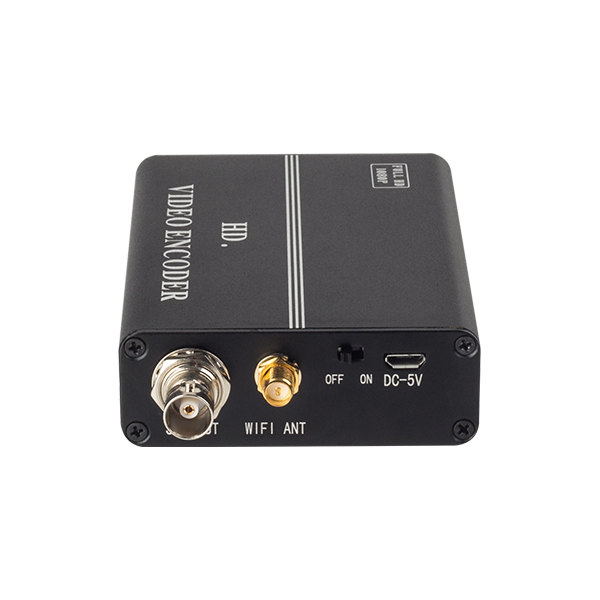

H8114M H.264 SDI WiFi battery h 264 encoder hd encoders
H8114M H.264 SDI WiFi battery h 264 encoder hd encoders
H8114M H.264 SDI WiFi battery h 264 encoder hd encoders
H8114M H.264 SDI WiFi battery h 264 encoder hd encoders

H8114M H.264 SDI WiFi battery h 264 encoder hd encoders

Want create site? Find Free WordPress Themes and plugins.   Product Description 1-channel HD SDI input, 1-channel audio input. Dual streams output.H.264 format, Audio: MP3, AAC, G.711 format. Configuration could be freely adjusted

Protocol : HTTP, RTSP, RTP, TCP, RTMP, RTMPS, HLS, UDP multicast, unicast

Coding standard : H.264

Encoded size : Up to 1920*1080 60FPS

Video bit rate : 5-60 fps

Phone:+86 18926159746 020-36164006
DESCRIPTION FEATURES



Product Description

1-channel HD SDI input, 1-channel audio input.

Dual streams output.H.264 format, Audio: MP3, AAC, G.711 format.

Configuration could be freely adjusted according to the need.

Support HTTP / RTSP / RTP/ TCP / RTMP / FLV / UDP / RTMPS / ONVIF / HLS protocols.

Red indicator: power. Yellow: Network. Green: Streaming status.



  • embedded hardware coding
  • H.264 BASELINE PROFILE / MAIN PROFILE/ HIGH PROFILE
  • support Android APP,low SDK delay
  • Support connect to network direct with no HD collection card
  • bitrate: CBR/VBR 16KBIT/S~12MBIT/S
  • 1000M Full Duplex interface
  • 1channel SDI input, 1channel 3.5MM independent audio input. Support transform •HDMI/VGA/CVBS to SDI,Support audio gain, can adjust volume individually
  • support 720p SD SDI input, 1080p HD video input.
  • support HLS/RTSP/RTP/RTMP/HTTP/UDP Unicast 、multicast (RTMP support •adding users and changing passwords),DHCP,ONVIF,blue-ray compatible with Wowza / FMS / RED5 and other streaming media server, with the streaming media server to push DC, to achieve live
  • support the main, secondary and other multi protocol and multi stream function,
  • bitrate:CBR/VBR 16KBIT/S~12MBIT/S
  • Video packaging mode:A:FFMPEG,B:VLC
  • Support customize stream output resolution
  • Transmission:TCP,UDP,1000M(RJ45 duplex Ethernet port)
  • Support watermark function (OSD), XY axis, font can be set
  • Support WEB access in Chinese/English, change passwords, WAN remote management (WEB)
  • Support DHCP gaining IP automatic ,support One-key recovery, upgrade and remote maintenance
  • Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
  • Support build-in or external methods , support left and right sound channel ,
  • Support one-key to restore the default configuration
  • Support set-top box decoder
  • The low power consumption design

Specification

Model



H8114M HD&SD SDI ENCODER



Input 1channel SDI signal,1channel 3.5 audio
output 1channel IP signal output
Video Input resolution Up to 1920x1080p 60FPS, standard HDMI resolution
Coding standard H.264
Coding



Level

H.264 BASELINE PROFILE



H.264 MAIN PROFILE

H.264 HIGH PROFILE





Encoded

Size

640*360~1920*1080
Video bit rate Rate control: CBR/VBR 16KBIT/S~12MBIT/S
Video frame rate 5- 60 fps
OSD Text, Image
Audio Input 1 channel embedded audio hdmi, 1 channel 3.5MM independent audio support audio gain
Format AAC/MP3/G.711
Audio bitrate 64Kb/s~384Kb/s
Sampling rate 32000、44100、48000etc
IP



Output

1 RJ 100M / 1000M adaptive Ethernet port, dual-stream( H.265/264 TS stream)
System Protocols HTTP, RTSP, RTMP, ONVIF, HLS, UDP multicast, unicast
Configure User interface, remote upgrade, Andriod APP, multi-one management platform
General Power supply 12V~2A
power consumption 5W
Size 100mm x 70mm x 25mm(L x W x H)
Weight 0.18KG
Packed size 170mm x 210mm x 80mm(L x W x H)
Packed weight 0.3KG
Operating temperature -20℃+ 60℃
Working humidity <90%,non-condensing
Our company reserves the right to adjust the product parameters, if you have any questions please contact us to check
