VC3.0- USB3.0 capture box
VC3.0- USB3.0 capture box
VC3.0- USB3.0 capture box
VC3.0- USB3.0 capture box
VC3.0- USB3.0 capture box

VC3.0- USB3.0 capture box

Want create site? Find Free WordPress Themes and plugins.              Product Description VC 3.0 capture box allows capturing FHD HDMI video directly to Windows or Android based devices over USB 3.0 interfac

Protocol : RTMPS, HTTP, RTSP, RTP, TCP, RTMP, HLS, UDP multicast, unicast

Coding standard : H.264,H.265

Encoded size : Up to 1920*1080 60FPS

Video bit rate : 5-60 fps

The most cost-effective hdmi video capture card usb : $40-$70, No MOQ Limited

Phone:+86 18926159746 020-36164006
DESCRIPTION FEATURES





Product Description

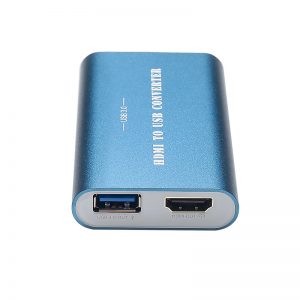

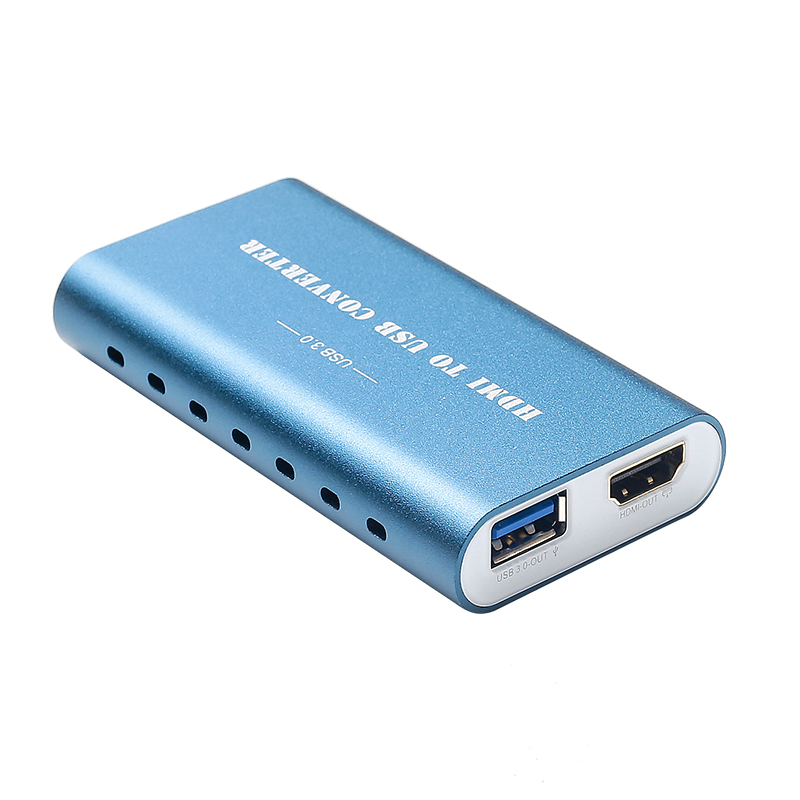

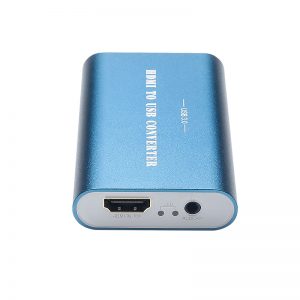

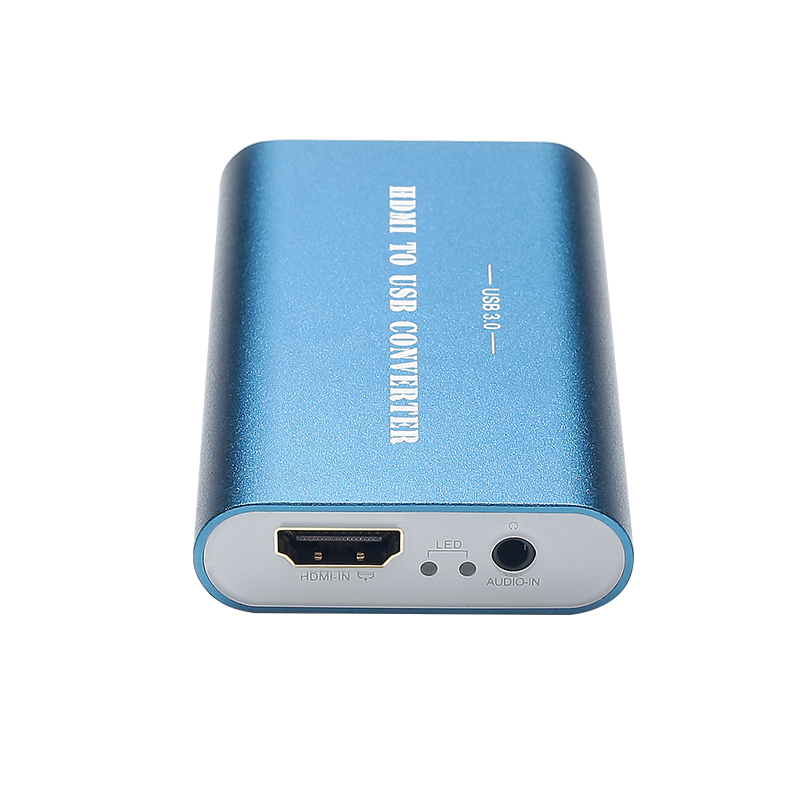

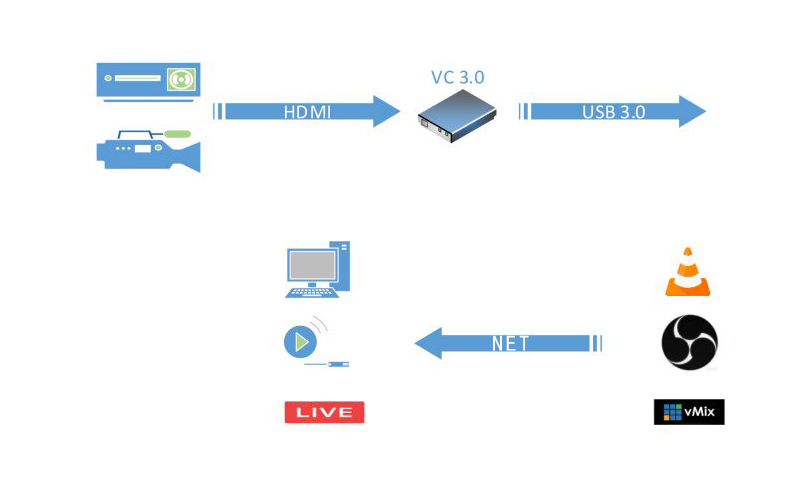

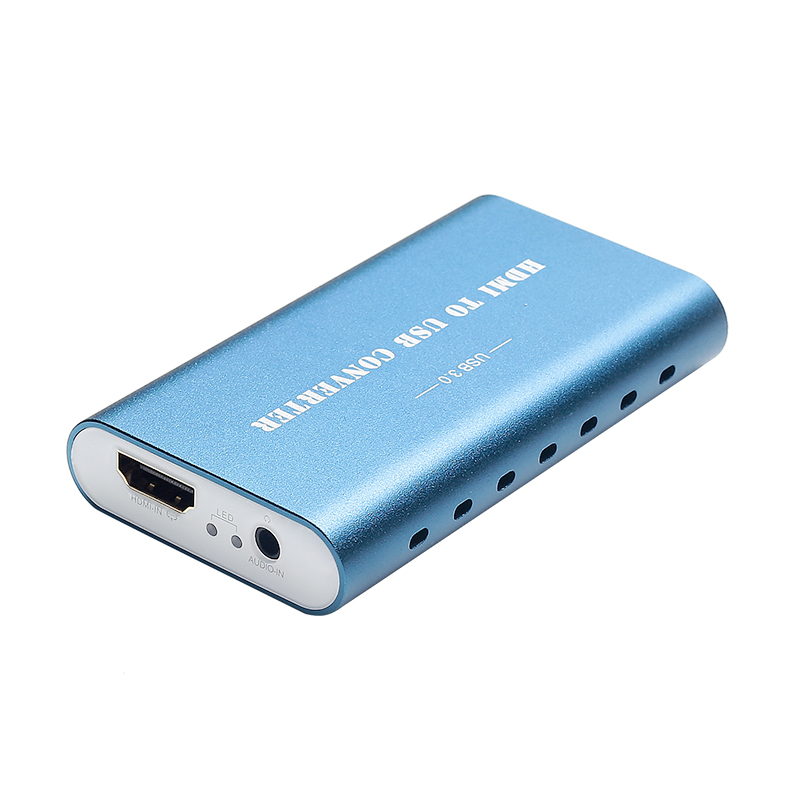

VC 3.0 capture box allows capturing FHD HDMI video directly to Windows or Android based devices over USB 3.0 interface and outputs up to 1920* 1080 60FPS video without any drive requirements.





Dimension



NO Item Parameters
1 Size 93mm*16mm*51mm
2 Net 0.05 kg


Specification

No Function Parameters
1 Video 1920*1080
2 Audio 44100
48000
3 Frame 60/fps
4 Color space YUY2
MJPG
5 Output 640*480 800*600 1024*768 1280*720 1280*960 1280*1024 1360*768 1400*900 1920*1080
6 Hue control contrast ratio, brightness, tone, saturation
7 Supported system windows7 windows8 windows10 linux
8 USB2.0 480 Mbps
9 USB2.0 4.8 Gbps
10 Red Power
11 Blue A/V states
12 HDMI version HDMI-1.4
13 Audio Jack 3.5mm
