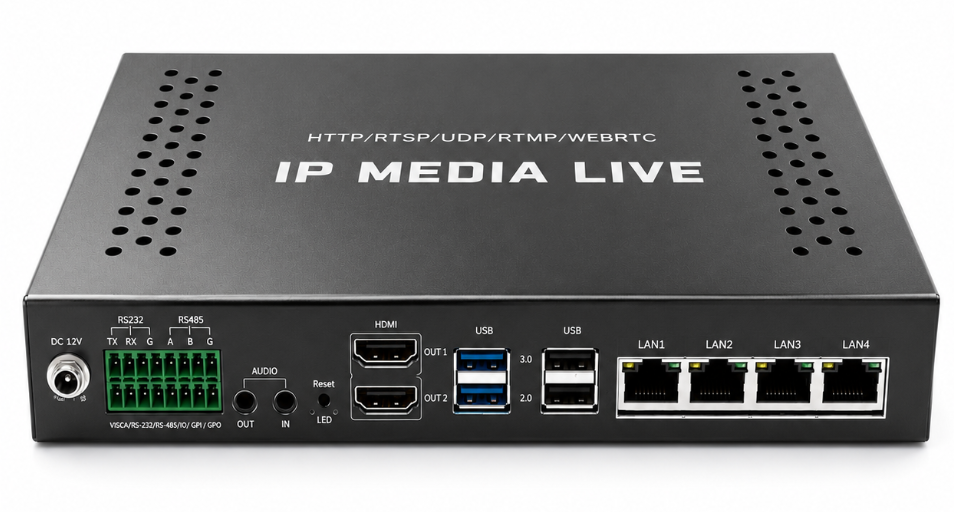

H11 Intelligent AI Compression and Forwarding Server

Product Description:

The H11 Intelligent AI Compression and Forwarding Server is a high-performance, highly reliable, and high-concurrency streaming media server. This product can simultaneously forward data from four gigabit Ethernet ports and perform intelligent transcoding and compression on 16 channels, supporting multiple streaming media protocols. It adopts the latest high-end ARM embedded chip architecture, providing cost-effective solutions for various application scenarios such as streaming media distribution, transmission, and compression.

Application Scenario:

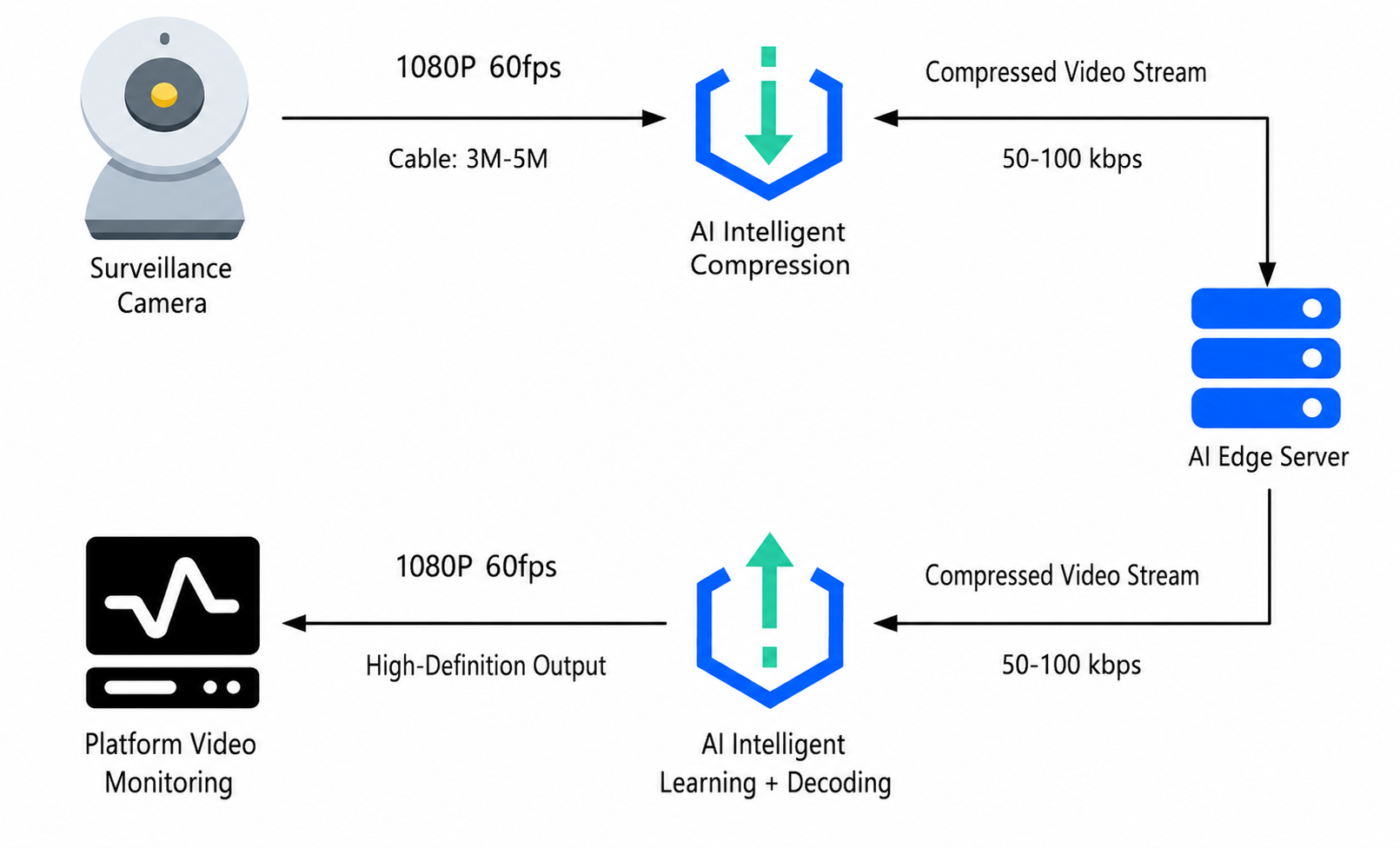

Weak network high-definition video transmission:

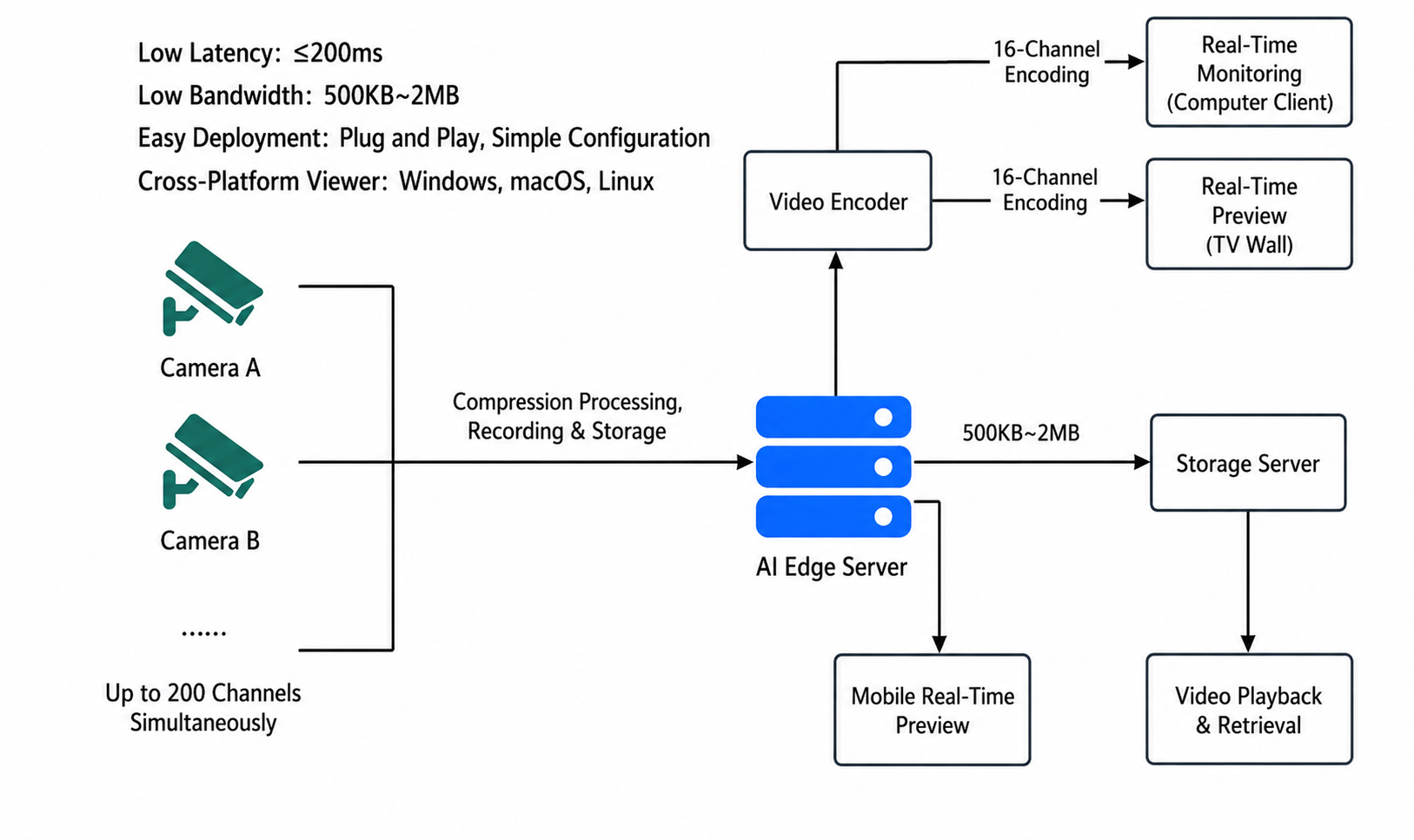

Warehouse logistics and security system:

Performance Advantages:

A powerful streaming media service that supports not only universal protocols like RTSP/RTMP and the proprietary SNLP protocol, but also other customizable protocols such as Security OnVIF and GB28181.

1. Supports encrypted login for web-based network management in web browsers
2. Supports various internationally recognized streaming media services including HTTP/RTSP/RTMP/HLS/UDP/SNLP/ONVIF/SRT streaming, RTP, unicast, and multicast.
3. Supports building a small LAN distribution system for streaming playback across over 1,000 display terminals.
4. Compatible with streaming servers such as Wowza, FMS, and RED5; works with these servers to deliver live video streams.
5. Search for cameras within the local network using ONVIF.
6. Supports integration with IPC, DVR, NVR, and video encoding front-end devices.
7. Supports converting MP4 and FLV video files from USB devices directly into RTSP or RTMP video streams for forwarding
8. Supports 16-bit transcoding compression, supporting 16 channels at 1080p 30fps or 8 channels at 1080p 60fps
9. Supports up to 5 hard drives or 4 USB drives for storage and recording
10. View network port input/output traffic, hard drive capacity, connection status, and more

➣ Provides a more reliable encrypted transmission method with multiple encryption options available.

1. Supports encrypted login for web-based network management in web browsers

➣ High bandwidth adaptability ensures stable transmission of high-definition, low-latency, and smooth audio-video signals even in low-bandwidth network environments.

1. Supports automatic DHCP IP assignment (default is disabled; some computer firewalls may block it)
2. Transmission methods support TCP, UDP, and 1000M (full-duplex mode).

➣ Recording Storage Function

1. Supports USB drives (FAT-32 and exFAT formats) for TS stream recording and hard drives (requires factory configuration).

➣ Low power consumption, minimal heat generation, supports 24/7 uninterrupted operation

1. Low-power power supply design
2. Supports access to Chinese and English web pages, password changes, and remote management over LAN (WEB)
3. Supports one-click restoration, version upgrades, and remote maintenance; enables one-click recovery of default configurations
4. Changes take effect immediately upon setup and require no restart; supports set-top box decoding

Specification ：

4x Gigabit Ethernet ports for simultaneous data forwarding, paired with 16-channel intelligent transcoding compression (1080p 30fps or 8-channel 1080p 60fps)

Wide protocol support including RTSP, RTMP, HLS, ONVIF, GB28181, SRT, and SNLP, ensuring broad compatibility with IPC, DVR, NVR, and encoding devices

Stable high-definition video transmission even over weak or low-bandwidth networks, with low latency and smooth playback

Flexible storage options supporting up to 5 HDDs or 4 USB drives for TS stream recording; also converts MP4/FLV files from USB devices directly into RTSP or RTMP streams for forwarding

Secure and easy management with encrypted web login, one-click restore, remote version upgrade, password change, and configuration changes that take effect immediately without restarting the server

Low power consumption and minimal heat generation, designed for 24/7 uninterrupted operation; supports streaming playback across over 1,000 display terminals in a LAN distribution system.
