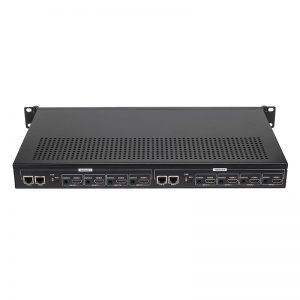

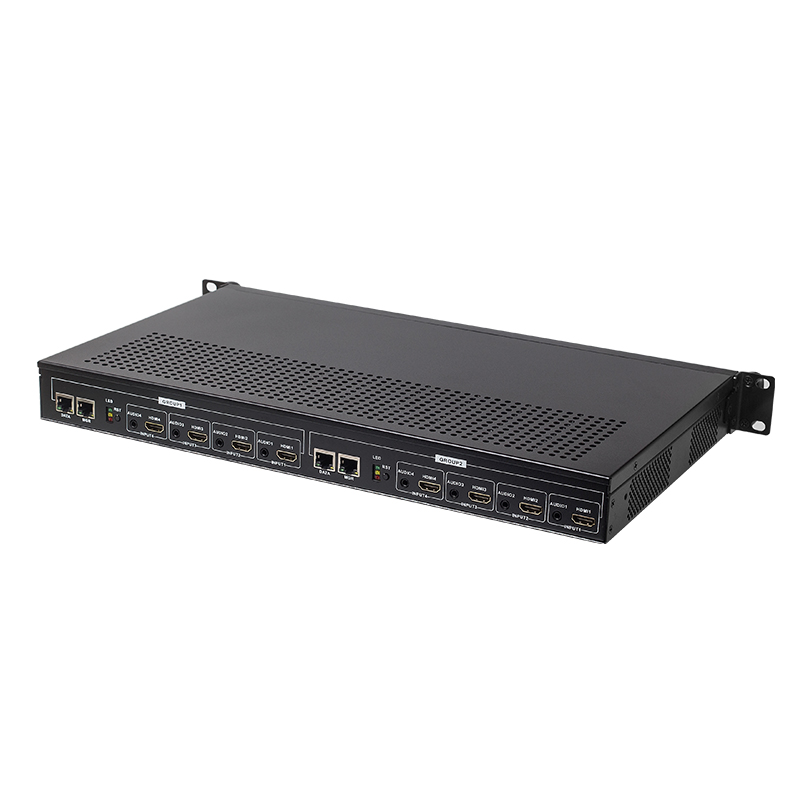

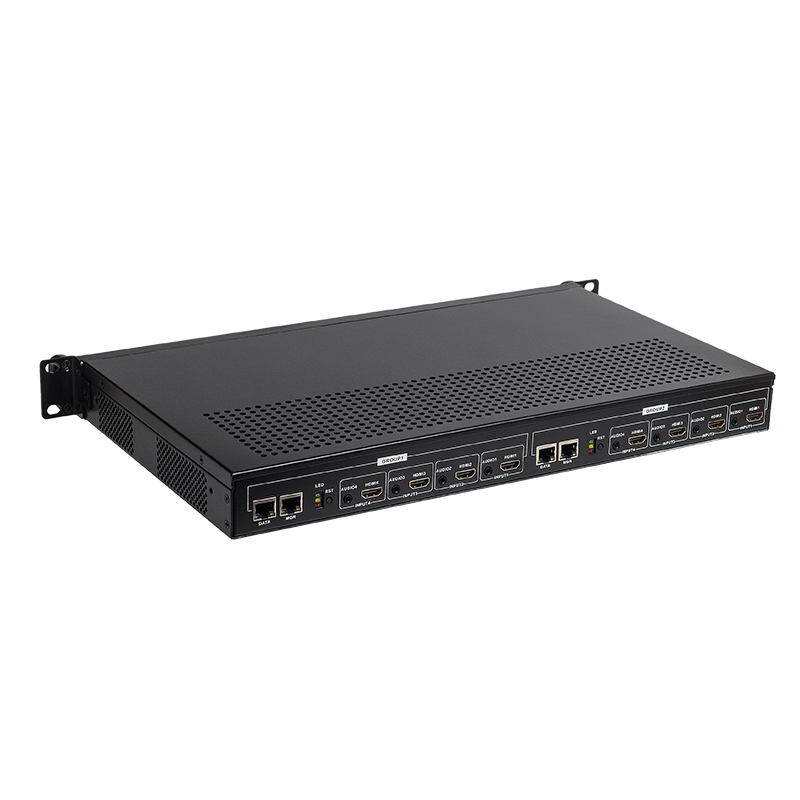

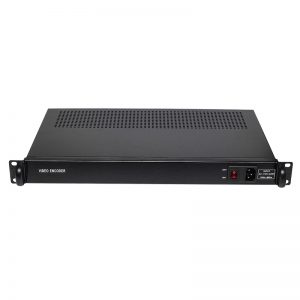

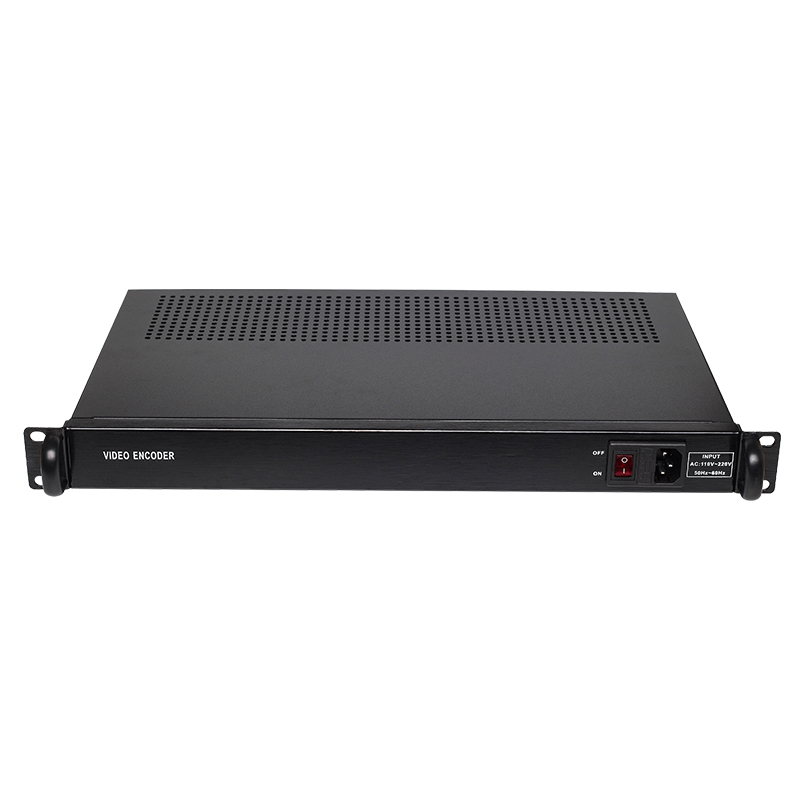

Y535L Dual Ethernet 8 channel h 265 HDMI h 264 encoder hd encoders

Product Description

• 8-channel HD HDMI input, 8-channel audio input.
• Dual streams output H.265/H.264 HEVC/AVC format, Audio: MP2,MP3, AAC, G.711 format.
• Configuration could be freely adjusted according to the need.
• Support RTMPS / HTTP / RTSP / RTP/ TCP / RTMP / UDP / ONVIF/HLS protocols.
• Dual ethernet port :data port and network management port.
• Red indicator: power. Yellow: Streaming status. Green: Network

1. 1. Resolution:1920x1080p/1920x1080i/1280x720p/720*576i/720*576p/640*480i (customization available)
   2. Support RTMPS /RTSP/ TCP/ RTMP/ HTTP/ ONVIF/ UDP/HLS unicast and multicast protocol
   3. Support Main TS stream and the sub TS stream  use in different network protocols for transmission
   4. Encoding level: 1, 2, 3, 4 and 5 (higher the level, larger of the code flow fluctuation ratio )
   5. Coding Standard: Base line profile/ main profile/high profile,.Audio: MP2,MP3, AAC, G.711, sampling rate: 32000,44100,48000 etc, encoded audio bit rate: 48K, 64K, 96K, 128K, 160K, 192K, 256K
   6. Video bitrate Control: CBR / VBR 16KBIT / S ~ 12MBIT / S
   7. Video packaging: FFMPEG
   8. Transmission: TCP, UDP, 100M for configuration/ 1000M for transmission

   (RJ45 Duplex network port)

   9. Support WEB access in Chinese/ English, passwords change, WAN remote management (WEB)
   10. Support Text/ image OSD, images superimposing.
   11. Supports automatically obtain IP (DHCP), support One-key recovery, upgrade and remote maintenance.
   12. Support build-in or external audio input, support left and right sound channel, Support audio gain, turn volume individually.
   13. Support encoding without video signal;
   14. Take effect immediately when applied the settings, don’t need to restart.
   15. Support one-key recovery to default setting.

Specification
