Product Description

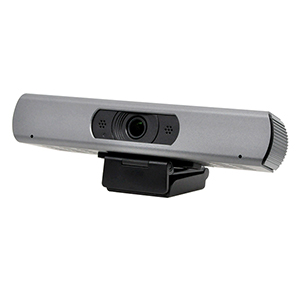

V30U is a professional camera that supports FHD 1080P image capture. The product supports 1 USB 2.0 output. 120 °wide angle field and strong compatibility. Easy to use. Widely used in webcasts, video conferences, Tele-Education and training, Tele-Surgery, game streaming, interviews, roadshows and so on.
Key Features
◆ 1080P Full HD Ultra Wide Angle
1080P full hd with ultra-high wide-angle, which could provide a maximum of 1080P @ 30fps / 25fps image output, and it’s also backward compatible with resolutions such as 720p. Wide FOV and horizontal FOV up to 120 °
◆ USB 2.0
Multifunction USB 2.0 interface with power supply, video and audio.
◆ Built-in microphone
Not only built-in microphone array to capture more realistic sound from all angles within 6 meters, making your sound sound natural and clear besed on our noise reduction chip. But also provides microphone in interface for external audio
◆ Low illumination
The Starlight CMOS image sensor with 55 dB high signal noise ratio can effectively reduce image noise in low-light conditions. At the same time, 2D and 3D noise reduction algorithms could greatly reduce image noise. The screen still keep clean and clear even in ultra-low light conditions.
◆ Built-in power switch
Supports one-button power switch, eliminating the need to repeatedly plug and unplug the power switch.
◆ Easy installation

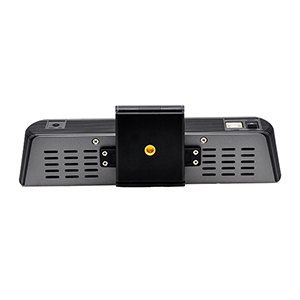

Equipped with a damping rotating shaft bracket as standard, it is suitable for mainstream monitors on the market, and it can be installed stably and reliably.
Relate series,click for more info
Specification
| model |
V30U HD USB Camera |
| sensor |
1/2.7”, CMOS, Effective Pixel: 2.07M |
| Input & Output |
1xUSB 2.0: Type B |
| audio port |
1-ch 3.5mm audio interface, Line In |
| Lens feature |
Resolution |
1080P@30fps/25fps, backward compatible with 720P etc. |
| scanning method |
Progressive |
| Lens options |
Lens 2: focus: f = 3.1mm, horizontal FOV:120° |
| Lens mount |
M12 |
| auto focus |
Support(except 120°lens) |
| Minimum illumination |
0.5Lux@(F1.8,AGC ON) |
| shutter |
1/30s~1/10000s |
| White balance |
Auto/manual/VAR |
| BLC |
Support |
| Digital noise reduction |
2D&3D digital noise reduction |
| USB feature |
Color System / Compression |
H.264/MJPEG/YUY2 |
| Operate System |
Windows7 (Only supports 1080p and under 1080p)
Windows 8.1,
Windows 10 or macOSTM 10.10 or GoogleTM ChromebookTM Version 29.0.1547.70 or Linux (need support UVC)
|
| Hardware requirements |
2.4 GHz Intel® Core 2 Duo processor or higher
2 GB RAM or more
USB 2.0 port
|
| Video format |
1080p@30fps/25fps, 720p@30f ps/25fps, 960x540p@30fps/25fps, 640x360p@30 fps/25fps |
| USB video communication protocol |
UVC 1.0 |
| General specification |
Electrical parameters |
5V(USB power supply);270mA ;1.4W |
| switch |
support |
| Operating temperature |
-10℃~40℃ |
| Storage Temperature |
-40℃~60℃ |
| Power Consumption |
MTBF 30000H |
| Size |
192mm*45mm*135mm |
| Net Weight |
0.214kg |
| Our company reserves the right to adjust product parameters. If you have any questions, please contact us to check |
