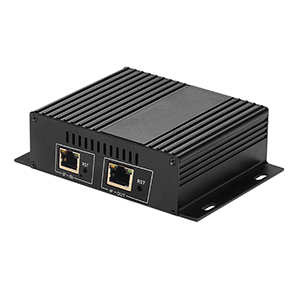

T1 Streaming Media transcoder

T1 Streaming Media transcoder is a professional high-definition audio and video transcoding product, which can realize single-channel IP streaming media conversion, supports up to 4k IP signal input, and supports 1 channel IP streaming media output. Rich streaming media video and audio formats are compatible, enabling fast hardware-based transcoding. It has a rich API interface and good compatibility. It can also communicate with PC version software terminals, Android and IOS system mobile clients to meet the needs of cross-brand, cross-terminal, and cross-platform video. It is suitable for multi-party audio and video interactive scenes in medical treatment, education, and finance.

◆After transcoding, the video stream is concurrently accessed by 20 users.

◆Standard protocol, integration and intercommunication

◆Embedded DSP hardware solution, high efficiency, low latency.

◆Fully open API, support the development of third-party applications, and it is easy for customers to develop and achieve customized requirements.

◆Decoding supports video format MPEG4/H264/H265/MPEG2/VP9/VP8, etc.

◆Decoding supports audio MP3/AAC/G.711/MP2/AC3, etc.

◆Decoding supports packaging formats such as ES/MPTS/SPTS

◆Encoding supports H264/H265 audio AAC/MP2/MP3/G.711, etc.

◆Support SRT/RTSP/RTMP/HTTP/RTP/UDP unicast, multicast and other protocols (RTMP supports adding user and password functions), and other protocols interchange. Support DHCP protocol.

◆IE webpage preview and play

Product model	T1 Streaming Media transcoder
Input	1 IP input
Output	1 channel IP output
Video	Input Encoding format	MPEG MPEG-2 MP @ML (SD) MPEG-4 AVC HP @L4.0, HP @L4.2 (HD) MPEG-4 AVC MP @L3.0 (SD) MPEG-H HEVC (ISO/IEC 23008-2) H264 H265 VP9 VP8
	Video Decoding protocol	CP/IP、DHCP、SSH、HTTP、RTSP、RTMP、RTMPS、UDP、RTP、Multicast、Unicast
	Coding level	H.265 MAIN PROFILE H.264 BASELINE PROFILE H.264 MAIN PROFILE H.264 HIGH PROFILE
	Input Resolution	38402160@30P ,20481152 30P 1920×1080 @60P, 1920×1080 @60i, 1920×1080 @50P, 1920×1080 @50i, 1920×1080 @30P,1280×720 @60P, 1280×720@50P 720×576 @50i,720×480 @60i 640×480/360, 480×270, 320×240, 320×180
	Output Resolution	1920×1080 @30P,(maximum) 1920×1080 @25P, 1920×1080 @25P 1280×720 @60P, 1280×720 @50P 720×576 @25P,720×480 @30P Auto
	Resolution of bitrate recommend	720×576 (D1) 800-1500kbps 1080x720p (HD) 1500-2500kbps 1920x1080p (Full HD) 2500-6000kbps Bitrate:16kbps to 12Mbps Adjustable
	Video frame rate	5-60 fps
	Transcoder output mode	Video+Audio ,Only video,Only Auido Full HD to SD Frame rate reduce Bitrate reduce
	Audio coding	AAC/MP3/MP2/G.711
	Audio bit rate	24Kb/s~256Kb/s
	Sampling rate	32000、44100 etc
IP output	1 RJ 100M / 1000M adaptive Ethernet port, dual-bitrate( H.265/264 TS stream)
System	Network protocol	SRT/RTSP/RTMP/HTTP/RTP/UDP/multicast/Unicast
System	Configuration management	WEB

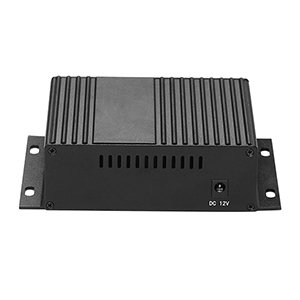

The common use	Power supply	DC 12V~2A AC 110-230V(1U,3U)
	power consumption	<5W <15W(1U 4channel) <80W (3U 16 channel )
	Size	100mm * 118mm * 40mm(lengthwidthheight)
	Operating temperature	-20℃+ 60℃
	Working humidity	<90%，Non-condensing
	Weight	0.3kg 4.0kg (1U) 7.5kg (3U)
	Size	100mm x118mm x 40mm(LengthWidthHeight) 430mm x 250mm x 45mm (1U) 560mm x 450mm x 270 mm (3U)
	Other model	YT4 1U 4channel, YT16 3U 16channel
Our company reserves the right to adjust the product parameters, if you have any questions please contact us to check
