HSC-W HDMI Encoder Decoder

Product Description

1,1 channel HDMI input,1 channel HDMI loop output（1 ch HDMI decode）, 1 channel Audio output

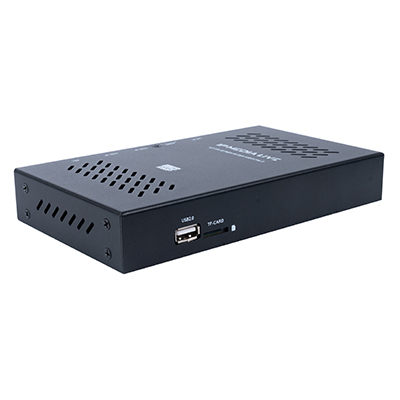

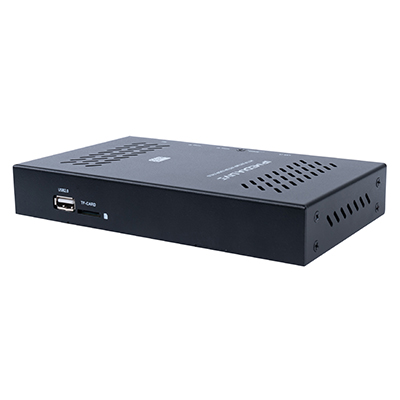

2,Support TF/USB Card recoding（maximum 128G）

3,4 streams output（HTTP UDP,HLS,RTSP etc）. Maximum support 8 RTMP/RTMPS streams working at the same time.

4,H.265/ H.264 format, Audio: MP3, AAC, G.711 format.

5,Configuration could be freely adjusted according to the need.

6,Support SRT / HTTP / RTSP / RTP/ TCP / RTMP / RTMPS / UDP / ONVIF / HLS/ P2P / GB28181/ NDI(Optional) protocols.

7,Support IOS/Andriod APP

8,Support P2P（Haiwei Protocol）

9,Support remote control WEB

10,POE and NDI optional

Red indicator: power. Yellow: Streaming status. Green: Network

Key features

HDMI to Ethernet(100M/1000M).
Resolution: up to 1920x1080p 60 FPS
Supports WINDOWS ,LINUX,MAC OS
Support SRT/ RTSP/ RTP/ RTMP/ RTMPS/HTTP/ ONVIF/ HLS/ / P2P / GB28181 / UDP Unicast and Multicast protocol,NDI optional
Encoding level: 1, 2, 3, 4 and 5 (the higher the level, the larger of the code flow fluctuation ratio )
Coding Standard: H.264 Base line profile/ main profile/high profile, H.265 main profile.
Audio: MP3, AAC, G.711, sampling rate: 32000,44100, etc, encoded audio bit rate: 48K, 64K, 96K, 128K, 160K, 192K, 256K etc
Video bitrate Control: CBR / VBR 16KBIT / S ~ 30MBIT / S
Video packaging: A mode: FFMPEG, B mode: VLC
Transmission: TCP, UDP, 100M/ 1000M (RJ45 Duplex network port)
Support WEB access in English, passwords change, WAN remote management (WEB)
Support Text/ image OSD, images superimposing.
Adjustable coordinates: 1920×1080; the font size: 8 to 72.
Supports automatically obtain IP (DHCP), support One-key recovery, upgrade and remote maintenance.
Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
Support build-in or external audio input, support left and right sound channel, Support audio gain, turn volume individually.
Support encoding without video signal;
Take effect immediately when applied the settings, don’t need to restart.
Support one-key recovery to default setting.
Low power consumption design,

Specification

Product model	HSC-W HDMI Encoder Decoder

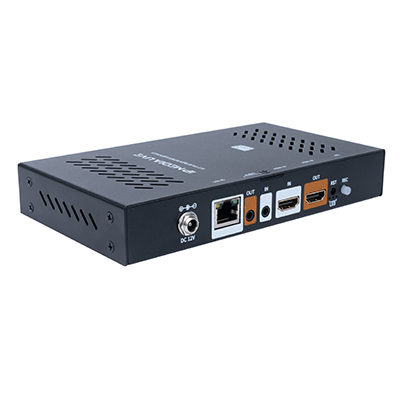

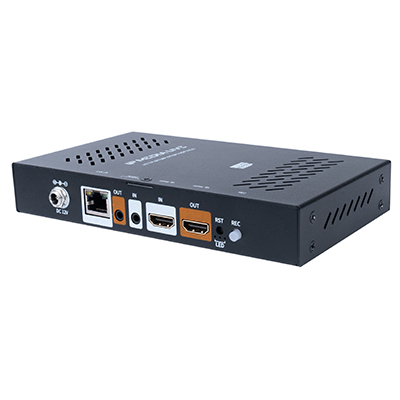

Input	1Channel HDMI input, 1 Channel line in audio
Output	1 channel IP signal output,HDMI loop out
TF card	128G(maximum )
Video	Input resolution	Up to 1920x1080p 60FPS, standard HDMI resolution
	Coding standard	H.265/ H.264
	Coding level	H.265 MAIN PROFILE H.264 BASELINE PROFILE H.264 MAIN PROFILE H.264 HIGH PROFILE
	Encoded size	640360~19201080 60fps（Maximum）
	Video bit rate	Rate control: CBR/VBR 16KBIT/S~30MBIT/S
	Video frame rate	5- 60 fps
	OSD	Text, Image
Audio	Input selection	1 channel HDMI, 1 channel 3.5MM independent audio, support audio gain
	Audio coding	AAC/ MP3/ G.711
	Audio bit rate	64Kb/s~384Kb/s
	Sampling rate	32000、44100,48000 etc
IP output	1 RJ 100M / 1000M adaptive Ethernet port, 4-stream( H.265/264 TS stream)
System	Network protocol	SRT,HTTP, RTSP, RTMP,RTMPS, ONVIF, HLS, UDP ,multicast, unicast,P2P,GB28181.NDI optional
System	Configuration management	User interface, remote upgrade, IOS/Andriod APP, multi-one management platform
	Power supply	12V~2A
	power consumption	5W
	Size	177mm * 101mm * 28mm(LWH)
	Operating temperature	-20℃+ 60℃
	Working humidity	<90%，Non-condensing
	USB
	Weight	0.8KG
Haiwei reserves the right to adjust the product parameters, if you have any questions please contact us to check
