H8110H HDMI Full HD Encoder with HDMI Loop Out
H8110H HDMI Full HD Encoder with HDMI Loop Out
H8110H HDMI Full HD Encoder with HDMI Loop Out
H8110H HDMI Full HD Encoder with HDMI Loop Out

H8110H HDMI Full HD Encoder with HDMI Loop Out

Want create site? Find Free WordPress Themes and plugins. Product Description 1-channel HDMI input, 1-channel audio input.,1-channel HDMI loop out Dual streams output.H.264 format, Audio: MP3, AAC, G.711 format. Configuration could be freely

Protocol : RTMPS,HTTP, RTSP, RTP, TCP, RTMP, RTMPS, HLS, UDP multicast, unicast

Coding standard : H.264

Encoded size : Up to 1920*1080 60FPS

Video bit rate : 5-60 fps

Phone:+86 18926159746 020-36164006
DESCRIPTION FEATURES

Product Description

1-channel HDMI input, 1-channel audio input.,1-channel HDMI loop out
Dual streams output.H.264 format, Audio: MP3, AAC, G.711 format.
Configuration could be freely adjusted according to the need.
Support SRT/ HTTP / RTSP / RTP/ TCP / RTMP / RTMPS / FLV/ UDP / ONVIF / HLS protocols.
Red indicator: power. Yellow: Streaming status. Green: Network



•Support resolution 1920x1080p/1920x1080i/1280x720p/720*576i/720*576p /640*480i
• Support HDMI/AUDIO input
• Supports WINDOWS /LINUX/MAC OS
• Support multiple devices display on a computer at the same time
•Support SRT/RTSP/RTP/RTMP/HTTP/UDP/ONVIF/HLS unicast and multicast protocol (RTMP support adding users and changing passwords),
•Support Main TS stream and the sub TS stream use in different network protocols for transmission
• Encoding level: 1, 2, 3, 4 and 5 ( the higher the level ,the larger of the code flow fluctuation ratio )
• Coding Standards BASELINE PROFILE / MAIN PROFILE / HIGH PROFILE, H.265:audio MP3, AAC, G.711 sampling rate: 32000,44100, etc., encoded audio bit rate: 48K, 64K, 96K, 128K, 160K, 192K, 256K
• Rate Control CBR / VBR 16KBIT / S ~ 12MBIT / S
• Video packaging: A mode: FFMPEG, B mode: VLC
• Transmission: TCP, UDP, 100M/1000M (RJ45 Duplex network port)
• Support WEB access in Chinese/English, passwords changing, WAN remote management (WEB)
• Support OSD in Chinese/ English, support OSD rolling, images superimposing, support adding LOGO ,Characters and symbols; Adjustable coordinates: 1920×1080; The font size resolution: 8 to 72.
• Support DHCP gaining IP automatic ,support One-key recovery, upgrade and remote maintenance
•Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
• Support build-in or external methods , support left and right sound channel , Support audio gain ,be able to turn volume individually
• Support no video signal coding;
• Complete the setting effect immediately, don’t need to restart
• Support one-key recovery of the default configuration
• Support set-top box decoder



Specification

Product model H8110H HDMI Encoder

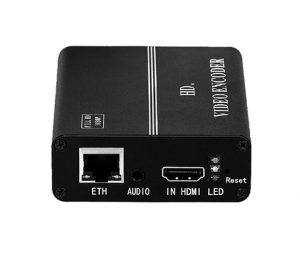

Input 1Channel HDMI input, 1 Channel line in audio

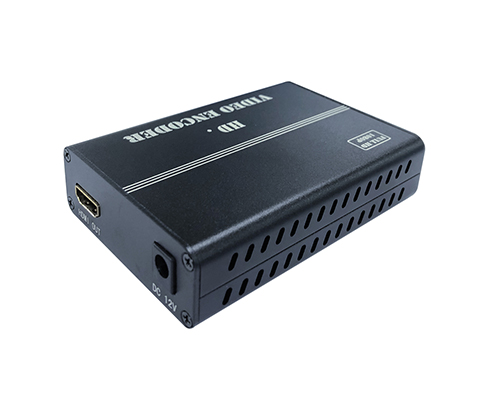

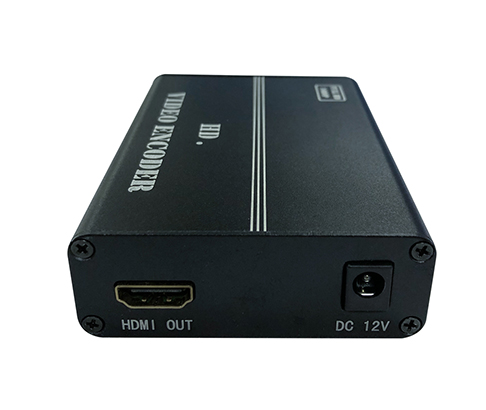

Output 1 channel IP signal output, 1channel HDMI loop out
Video Input resolution Up to 1920x1080p 60FPS, standard HDMI resolution
Coding standard H.264
Coding level     H.264 BASELINE PROFILE



H.264 MAIN PROFILE

H.264 HIGH PROFILE





Encoded size

640*360~1920*1080
Video bit rate Rate control: CBR/VBR 16KBIT/S~12MBIT/S
Video frame rate 5- 60 fps
OSD Text, Image
Audio Input selection 1 channel embedded audio hdmi, 1 channel 3.5MM independent audio support audio gain
Audio coding AAC/MP3/MP2/G.711
Audio bit rate 64Kb/s~384Kb/s
Sampling rate 32000、44100 ,48000etc
IP



output

1 RJ 100M / 1000M adaptive Ethernet port, dual-bitrate( H.265/264 TS stream)
System Network protocol SRT,HTTP, RTSP, RTMP, RTMPS,ONVIF, HLS, UDP multicast, unicast
Configuration management User interface, remote upgrade , multi-one management platform
The common use Power supply 12V~2A
power consumption 5W
Size 100mm * 70mm * 25mm(length*width*height)
Operating temperature -20℃+ 60℃
Working humidity <90%,Non-condensing
Weight 0.18KG
Our company reserves the right to adjust the product parameters, if you have any questions please contact us to check
