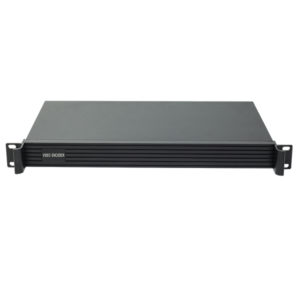

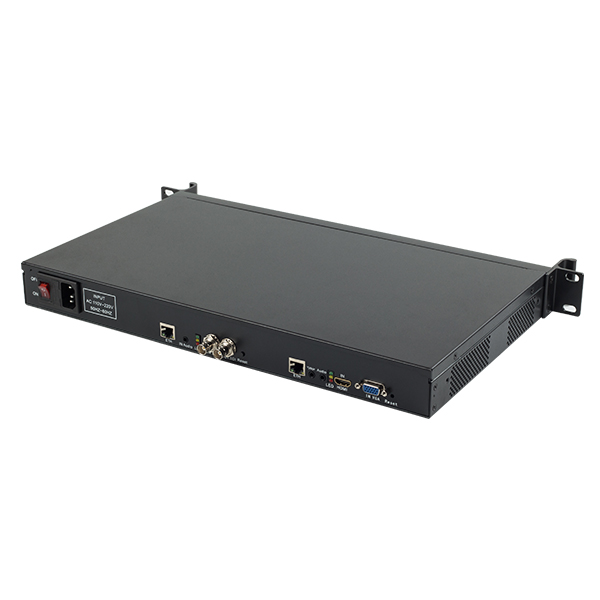

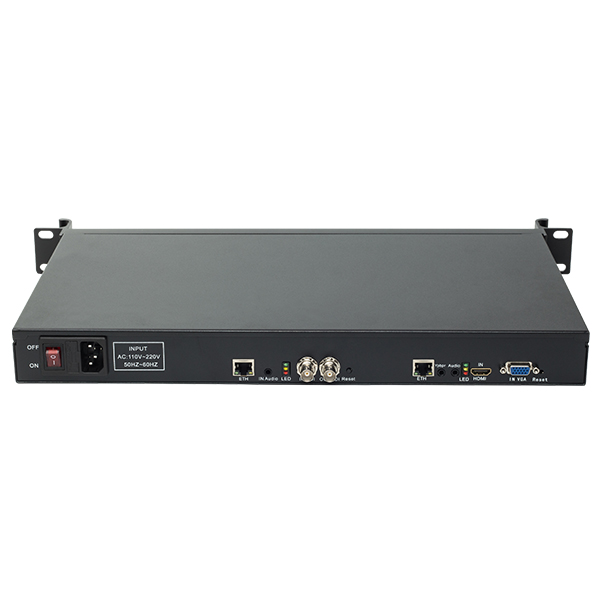

H3419 HDMI CVBS SDI VGA YPBPR encoder
H3419 HDMI CVBS SDI VGA YPBPR encoder
H3419 HDMI CVBS SDI VGA YPBPR encoder
H3419 HDMI CVBS SDI VGA YPBPR encoder

H3419 HDMI CVBS SDI VGA YPBPR encoder

Want create site? Find Free WordPress Themes and plugins. Product Description HDMI/VGA/CVBS/YPBPR/SDI 1-Channel HDMI input, 1-channel audio input. 1-Channel VGA input,1-channel CVBS input 1-Channel YPBPR input 2-Channel IP output Dual str

Protocol : HTTP, RTSP, RTP, TCP, RTMP, HLS, UDP multicast, unicast

Coding standard : H.265 / H.264

Encoded size : Up to 1920*1080 60FPS

Video bit rate : 5-60 fps

Phone:+86 18926159746 020-36164006
DESCRIPTION FEATURES

Product Description

HDMI/VGA/CVBS/YPBPR/SDI
1-Channel HDMI input, 1-channel audio input.
1-Channel VGA input,1-channel CVBS input
1-Channel YPBPR input
2-Channel IP output
Dual streams output H.264 format, Audio: MP3, AAC, G.711 format.
Configuration could be freely adjusted according to the need.
Support HTTP / RTSP / RTP/ TCP / RTMP / FLV/ UDP / ONVIF / HLS protocols.
Red indicator: power. Yellow: Network Green:Streaming status.



  • Embedded hardware coding
  • Standard 1U rack
  • Support H.264 BASELINE PROFILE / MAIN PROFILE/ HIGH PROFILE
  • Support multiple devices display on a computer at the same time
  • Support network directly connected, don’t need match HD collection card.
  • Network interface : 1000M full duplex mode
  • Support 1 chnnel HDMI/VGA/CVBS/YPBPR/SDI input (SDI input and SDI loop out, single IP output, support 2 IP output at the same time)
  • Support the independent external audio input
  • Support encoding without video signal
  • Support up 1080 input
  • Support RTSP/RTP/RTMP/HTTP/UDP/ONVIF/HLS unicast and multicast protocol (RTMP support adding users and changing passwords), Support DHCP/,ONVIF protocol, support Blue ray HD
  • Compatible with Wowza/FMS/RED5 streaming media server etc, work in with streaming media server to push the streaming , to achieve a live streaming
  • Support Main TS stream and the sub TS stream  use in different network protocols for transmission (Multi-rate multi-protocol support)
  • Rate Control :CBR / VBR 16KBIT / S ~ 12MBIT / S
  • Transmission: TCP, UDP, 1000M (RJ45 Duplex network port)
  • Support WEB access in Chinese/English, passwords changing, WAN remote management (WEB)
  • Support OSD in Chinese/ English, support OSD rolling, images superimposing,
  • Support DHCP gaining IP automatic ,support One-key recovery, upgrade and remote maintenance
  • Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
  • Support build-in or external methods , support left and right sound channel , Support audio gain ,be able to turn volume individually
  • complete the setting effect immediately, don’t need to restart
  • Support one-key recovery of the default configuration
  • Support set-top box decoder
  • The low power consumption design

Specification

Product model H3419 (full-interface) HDMI/VGA/CVBS/YPBPR/SDI  HD encoder
Input 1-channel HDMI/VGA/CVBS/YPBPR/SDI input
Output 2-channel IP signal output, 1-channel SDI input and output
Video Input resolution 1920×1080/1680×1050/1280×720/1600×1200/960×540/720*576/704*576 etc.
Coding standard H.264
Coding level



H.264 BASELINE PROFILE

H.264 MAIN PROFILE

H.264 HIGH PROFILE





Encoded size

640*360~1920*1080(Can customize)
Video bit rate Rate control: CBR/VBR 16KBIT/S~12MBIT/S
Video frame rate 5-60 FPS
OSD Character ,images
Audio Input selection 1-     channel embedded audio HDMI, 1-channel audio



1-channel VGA ,1- channel YPBPR,1-channel SDI,2-channel 3.5MM independent audio Support audio gain

Audio coding AAC/MP3/G711
Audio bit rate 64Kb/s~384Kb/s
Sampling rate 32000、44100 ,48000etc
IP



output

2pcs RJ 100M / 1000M adaptive Ethernet port, TS stream standard, dual-stream, ONVIF protocol
System Network protocol RTSP/RTP/RTMP/HTTP/UDP/ONVIF/HLS multicast, unicast
Configuration management Support IE configuration, remote upgrade
The common use Power supply AC 100~220V
power consumption 12W
Size 430mm * 250mm *45mm(length*width*height)
Operating temperature -20℃+ 60℃
Working humidity <90%,Non-condensing
Weight 3KG
Our company reserves the right to adjust the product parameters, if you have any questions please contact us to check
