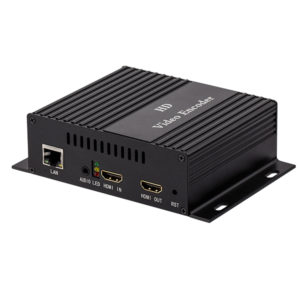

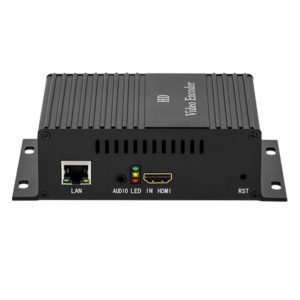

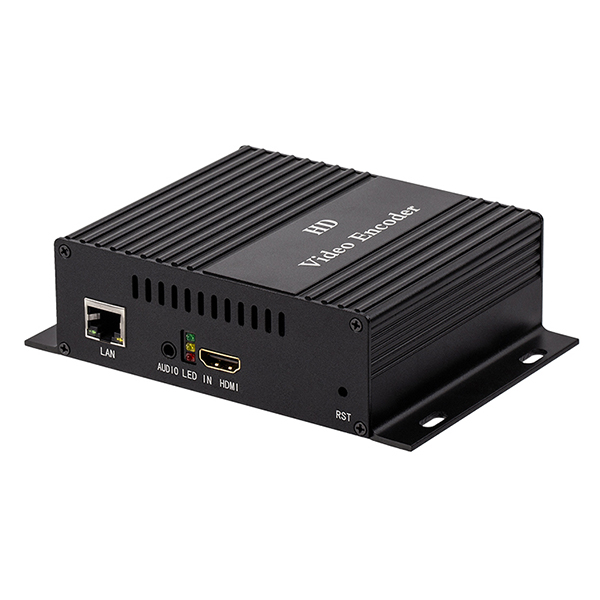

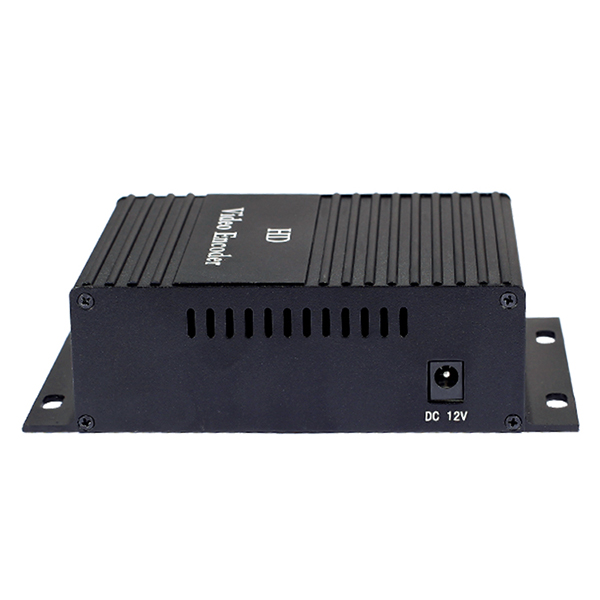

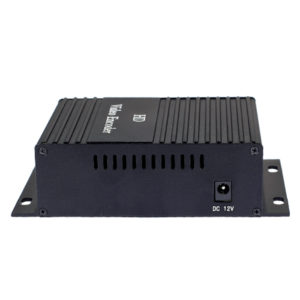

H3110C HDMI audio visual encoder
H3110C HDMI audio visual encoder
H3110C HDMI audio visual encoder
H3110C HDMI audio visual encoder

H3110C HDMI audio visual encoder

Want create site? Find Free WordPress Themes and plugins.                   Product Description H3110C HD HDMI Encoder is a professional high-definition audio and video encoding product, which sup

Protocol : HTTP, RTSP, RTP, TCP, RTMP, HLS, UDP multicast, unicast

Coding standard : H.264

Encoded size : Up to 1920*1080 60FPS

Video bit rate : 5-60 fps

Phone:+86 18926159746 020-36164006
DESCRIPTION FEATURES



Product Description

H3110C HD HDMI Encoder is a professional high-definition audio and video encoding product, which supports 1 channel HDMI high-definition audio and video, 1 channel audio interface 3.5MM independent collection function. Dual streaming H.264 encoded output format, an audio MP3 / AAC / G711 format. Adjustable rate coding, the quality of picture can be controlled. Support HTTP / RTSP / RTP / RTMP / UDP/ONVIF/ HLS transport protocols etc. It is easy to install, plug-play, no need to disassemble the machines, and there is no computer hardware compatibility issues.

Key features

The embedded hardware encoding
• Support H.264 BASELINE PROFILE / MAIN PROFILE / HIGH PROFILE
• Support multiple devices display on a computer at the same time
• Encoding levels: Level 1, Level 2, Level 3, Level 4, Level 5 ( The higher of the level ,the larger code flow fluctuation ratio .)
• Rate Control CBR / VBR 16KBIT / S ~ 12MBIT / S
• Support Network interface full-duplex mode 1000M
• 1 channel HDMI input, 1 channel audio interface 3.5MM independent input, support SDI / VGA / CVBS convert to HDMI input, Support audio gain ,be able to turn volume individually
• Support up to 720P ,HD 1080P video input
• Support RTSP/RTP/RTMP/HTTP/UDP/ ONVIF/HLS unicast and multicast protocol (RTMP support adding users and changing passwords), Support DHCP/,ONVIF protocol, support HD Blue ray
• Compatible with Wowza/FMS/RED5 streaming media server etc, work in with streaming media server to push the streaming , to achieve a live streaming
• Support Main TS stream and the sub TS stream use in different network protocols for transmission
• Video packaging: A mode: FFMPEG, B mode: VLC
• Supports streaming resolution custom output settings
• Transmission: TCP, UDP, 1000M (RJ45 Ethernet port duplex)
• Support streaming add watermark (OSD), XY axis, the font can be set;
• Transmission: TCP, UDP, 1000M (RJ45 Duplex network port)
• Support WEB access in Chinese/English, passwords changing, WAN remote management (WEB)
• Support DHCP gaining IP automatic ,support One-key recovery, upgrade and remote maintenance
• Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
• Support build-in or external methods , support left and right sound channel , Support audio gain ,be able to turn volume individually
• Support coding without video signal; Complete the setting effect immediately, don’t need to restart
• Support one-key recovery of the default configuration
• Support set-top box decoder
• The low power consumption design

Specification

Product model H3110C HD HDMI encoder
Input 1 channel HDMI input,1 channel 3.5 audio input
Output 1 channel IP signal output
Video Input resolution 1920x1080p/1920x1080i/1280x720p/720*576i/720*576p /640*480i And other conventional resolution
Coding standard H.264
Coding level     H.264 BASELINE PROFILE



H.264 MAIN PROFILE

H.264 HIGH PROFILE





Encoded size

640*360~1920*1080(Can customize)
Video bit rate Rate control :CBR/VBR 16KBIT/S~12MBIT/S
Video frame rate 5-60
OSD Text, image
Audio Input selection 1 channel embedded audio HDMI, 1 channel 3.5MM independent audio(Support audio gain)
Audio coding AAC/MP3/G.711
Audio bit rate 64Kb/s~384Kb/s
Sampling rate 32000、44100,48000 etc
IP



output

1 RJ 100M / 1000M adaptive Ethernet port, TS stream standard, dual-bitrate, ONVIF protocol
System Network protocol Supports HTTP, RTSP, RTMP, HLS, UDP multicast, unicast
Configuration management Support IE configuration, remote upgrade
The common use Power supply 12V~2A
power consumption 5W
Size 100mm *118mm * 40mm(length*width*height)
Operating temperature -20℃+ 60℃
Working humidity <90%,Non-condensing
Weight 0.3KG
Our company reserves the right to adjust the product parameters, if you have any questions please contact us to check

Specification

Product model H3110C HD HDMI encoder
Input 1 channel HDMI input,1 channel 3.5 audio input
Output 1 channel IP signal output
Video Input resolution 1920x1080p/1920x1080i/1280x720p/720*576i/720*576p /640*480i And other conventional resolution
Coding standard H.264
Coding level     H.264 BASELINE PROFILE



H.264 MAIN PROFILE

H.264 HIGH PROFILE





Encoded size

640*360~1920*1080(Can customize)
Video bit rate Rate control :CBR/VBR 16KBIT/S~12MBIT/S
Video frame rate 30/60
OSD Character ,images
Audio Input selection 1 channel embedded audio HDMI, 1 channel 3.5MM independent audio(Support audio gain)
Audio coding AAC/MP3/G711
Audio bit rate 64Kb/s~384Kb/s
Sampling rate 32000、44100,48000 etc
IP



output

1 RJ 100M / 1000M adaptive Ethernet port, TS stream standard, dual-stream, ONVIF protocol
System Network protocol Supports HTTP, RTSP, RTMP, UDP, HLS multicast, unicast
Configuration management Support IE configuration, remote upgrade
The common use Power supply 12V~2A
power consumption 5W
Size 100mm *118mm * 40mm(length*width*height)
Operating temperature -20℃+ 60℃
Working humidity <90%,Non-condensing
Weight 0.3KG
Our company reserves the right to adjust the product parameters, if you have any questions please contact us to check
