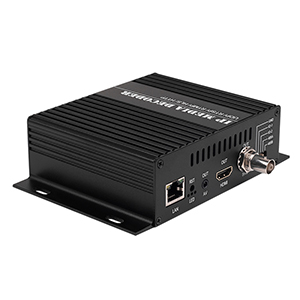

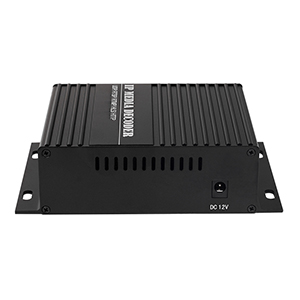

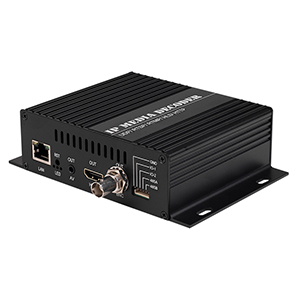

H9110D HD decoder H.264/H.265

H9110D high-definition HDMI+CVBS decoder is a professional high-definition audio and video decoding product, which has the function of supporting 1-channel high-definition HDMI audio and video and 1-channel CVBS video output. Decoding output 1 channel 1080P or 1 channel CVBS analog video, audio decoding support MP3/AAC format. Support rtsp/http/udp/rtmp/hls/rtp and other protocols. It is very convenient to use. It can be used by plugging in the Internet cable, which saves the trouble of disassembling the machine and does not have the compatibility problem with computer hardware.

PRODUCT MODEL:

H9110D HDMI+CVBS HD decoder

Output 1 HDMI signal output, 1 CVBS signal output

Input 1 IP signal input

Video output resolution 4K/1920×1080/1280×720/1600×1200/960×540/720 * 576/704 * 576 and other conventional resolutions

Decoding standard

H.264/H.265

Decode level H.264 BASELINE PROFILE

H.264 MAIN PROFILE / H.265 MAIN PROFILE

H.264 HIGH PROFILE

Split screen display can display 1 and 4 split screen output

Decodable protocol intranet http/rtsp/udp extranet rtmp, hyperlink protocol

Audio output selects 1 channel of hdmi embedded audio and 1 channel of 3.5 audio

Audio coding AAC/MP3

IP：Input 1 RJ 100M/1000M adaptive Ethernet port

System configuration management supports IE configuration and remote upgrade

General power supply 12V~2A

Power consumption 5W

Size 100mm x 118mm x 40mm (L x W x H)

Working temperature – 20 ℃+60 ℃

Working humidity<90%, non-condensing

Weight 0.3KG

Our company reserves the right to adjust the product parameters. If you have any questions, please contact us to check
