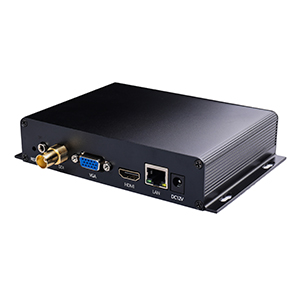

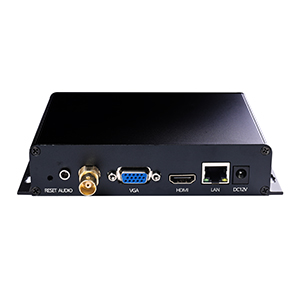

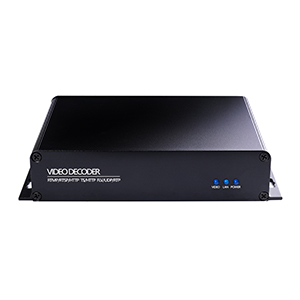

HX4030 H.265 HDMI SDI VGA Decoder

This 4-channel audio and video streaming decoder supports H.265 and H.264 decoding up to 2160P@30. It supports mainstream streaming protocols and is equipped with HDMI, SDI and VGA video outputs. Widely applied in live streaming systems, security monitori

Product Name : 4-Channel 4K Streaming Media Video Decoder

Model : Customizable

Video Decoding Standard : H.265, H.264

Max Resolution : 2160P@30

Decoding Channels : 4 Channels

Frame Rate : 1~60fps

Bitrate Range : 32 kbps ~ 32000 kbps

Audio Decoding : G711A, G711U, AAC+, AAC++, MP2, MP3

Streaming Protocols : HTTP TS, HTTP FLV, RTMP, RTMPS, RTSP, RTSPS, UDP, SRT, RTP, HLS, Private HTTP PTE

Video Output Interface : HDMI, SDI, VGA

Audio Output Interface : HDMI Audio, 3.5mm Stereo

Network Port : Gigabit Ethernet (1000Mbps)

Power Supply : DC 12V 2A

Power Consumption : ＜5W

Operating Temperature : -20℃ ~ +60℃

Working Humidity : ＜90%, non-condensing

Dimension : 15.5cm × 10.2cm × 3.2cm

Weight : 313g

Application Scenarios : Live Streaming, Security Monitoring, Campus Media System, Visual Dispatch, IPTV System

WhatsApp： +86 15521003315

Specification		Parameter
Media Access	Standard Agreement	HTTP TS/HTTP FLV/RTMP/RTMPS/ RTSP/ RTSPS/UDP/SRT/RTP/HLS
	interface	HDMI、VGA、SDI
	Private Agreement	HTTP PTE
Video decode	Type	H.265/H.264
	frame rate	1-60
	Bit rate(k bit)	32-32000
	Resolving power	Maximum support 2160P@30
	Number of routes	1-4
Audio decode	Type	G711A/G711U/AAC+/AAC++/MP2/MP3
	Number of Channels	single channel/Dual Channel
	Sampling rate Hz	8000/11250/22500/44100/48000
	Number of routes	1
Video Output	HDMI	2160P@30/1440P@30/1080P@60/1080I@60/1080P@50/1080I@50/1080P30/1080P25/720P60/720P50/576P50/480P60
	VGA	1080P@60/1080I@60/1080P@50/1080I@50/1080P30/1080P25/720P60/720P50/576P50/480P60
	SDI	1080P@60/1080I@60/1080P@50/1080I@50/1080P30/1080P25/720P60/720P50/576P50/480P60
	Color	Brightness, Contrast, Chroma, Saturation
Audio Output	HDMI	48KHz Dual Channel Output
	3.5MM	Dual Channel Output
	Enabling	Disable/Enable
Common	Network	1000Mbps
	Configuration	WEB,Upload,Reset
	Power Supply	12V/DC,2A
	Power	<5W
	Temperature	-20℃+60℃
	Humidity	<90%, non-condened
	Size	15.5cmx10.2cmx3.2cm
	Weight	313g

Specification		Parameter
Media Access	Standard Agreement	HTTP TS/HTTP FLV/RTMP/RTMPS/ RTSP/ RTSPS/UDP/SRT/RTP/HLS
	interface	HDMI、VGA、SDI
	Private Agreement	HTTP PTE
Video decode	Type	H.265/H.264
	frame rate	1-60
	Bit rate(k bit)	32-32000
	Resolving power	Maximum support 2160P@30
	Number of routes	1-4
Audio decode	Type	G711A/G711U/AAC+/AAC++/MP2/MP3
	Number of Channels	single channel/Dual Channel
	Sampling rate Hz	8000/11250/22500/44100/48000
	Number of routes	1
Video Output	HDMI	2160P@30/1440P@30/1080P@60/1080I@60/1080P@50/1080I@50/1080P30/1080P25/720P60/720P50/576P50/480P60
	VGA	1080P@60/1080I@60/1080P@50/1080I@50/1080P30/1080P25/720P60/720P50/576P50/480P60
	SDI	1080P@60/1080I@60/1080P@50/1080I@50/1080P30/1080P25/720P60/720P50/576P50/480P60
	Color	Brightness, Contrast, Chroma, Saturation
Audio Output	HDMI	48KHz Dual Channel Output
	3.5MM	Dual Channel Output
	Enabling	Disable/Enable
Common	Network	1000Mbps
	Configuration	WEB,Upload,Reset
	Power Supply	12V/DC,2A
	Power	<5W
	Temperature	-20℃+60℃
	Humidity	<90%, non-condened
	Size	15.5cmx10.2cmx3.2cm
	Weight	313g
