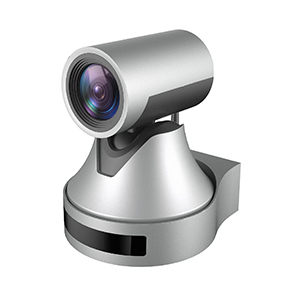

Z220 Information & Communication HD Camera

This Z220 series camera has perfect functions, superior performance and rich video output interfaces; Featuring with advanced ISP processing algorithms, offering vivid and high resolution video with a strong sense of depth and fantastic color rendition. It supports H.264/H.265 encoding which makes motion video more fluent and clear under low bandwidth conditions.

Key Features

• Full HD Resolution: 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920×1080 with frame rate up to 60fps.
• Multiple Optical Zoom Lens: 5X/10X/12X/20X/30X optical zoom lens. The 5X zoom camera is with 83.7° FOV without distortion.
• Leading Auto Focus Technology: Fast, accurate and stable auto focusing technology.
• Low Noise and High SNR: Super high SNR image is achieved with low noise CMOS. Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity.

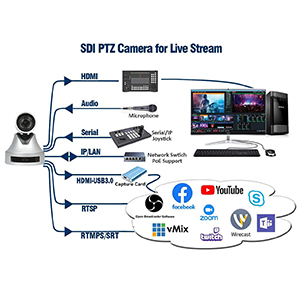

Multiple Video Output Interfaces: HDMI, SDI, CVBS, LAN, UAB3.0, WiFi (optional), both video and audio can be output from HDMI, SDI, LAN at the same time. The transmission distance of SDI under 1080p60 is 100 meters.

• Multiple Video Compression Standards: Support H.264/H.265 video compression.
• Audio Input Interface: Support AAC, MP3 and G.711A audio compression, 8000, 16000, 32000, 44100, 48000 sampling frequency.
• Video / Audio Record and Store: 0 interface supports U disk storage (U disk storage only supports FAT32 format), real-time record and store.
• Multiple Network Protocol: Support ONVIF, GB/T28181, RTSP, RTMP protocols; Support RTMP push mode, easy to be connected to streaming server (Wowza, FMS); Support RTP multicast mode; Support network full command VISCA control protocol.

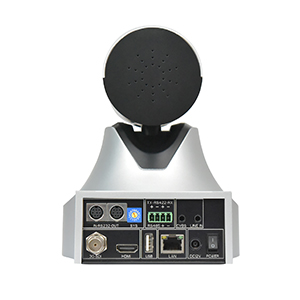

• Control Interface: RS422 input(compatible with RS485), RS232-IN, RS2323-OUT, RS232 (cascade connection)
• Multiple Control Protocol: Support VISCA, PELCO-D, PELCO-P protocols; Support automatic identification protocols.
• Quiet Pan / Tilt Movement: With high accuracy step driving motor, camera can pan / tilt extremely quiet and smooth.
• IR / Wireless Remote Control: Users can choose IR remote control or wireless remote control according to different conditions. 2.4G wireless remote control is not affected by the angle, distance or infrared interference. Far-end-control is also available.
• Multiple Presets: Up to 255 presets (10 presets via remote control).
• Multiple Application: Online-education, Lecture Capture, Webcasting, Video conferencing, Tele-medicine, Unified Communication, Emergency command and control systems, etc.

Relate series,click for more info

Specification
