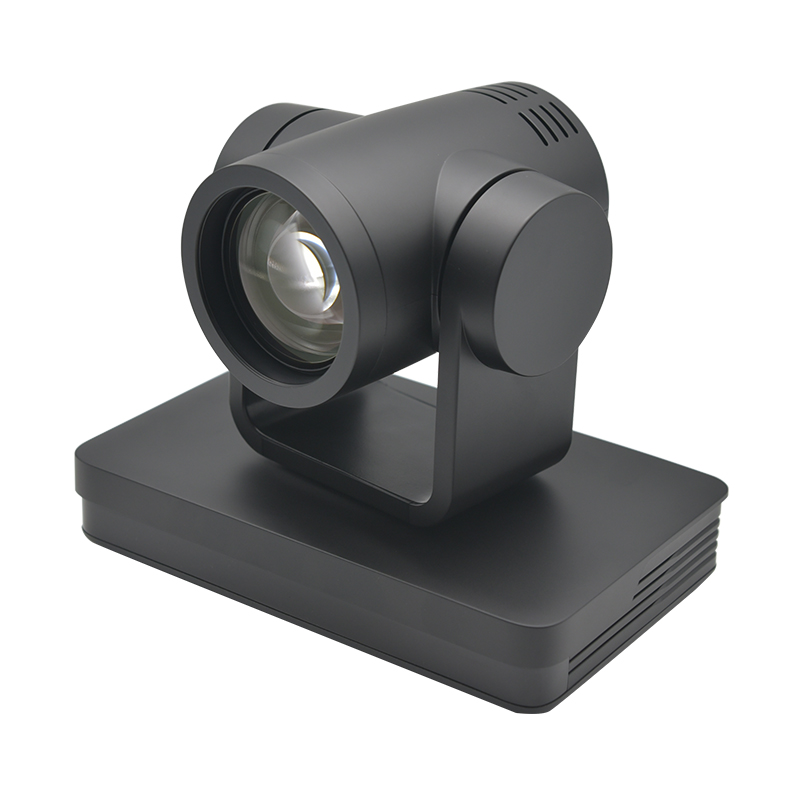

Z1301 series Full HD PTZ Camera

1. Z1301 employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920×1080 with frame rate up to 60fps.
2.5X, 12X, 20X, 30X optical zoom lens for selection; 5X lens has 83 degree wide angle with little distortion.
3.Leading auto focus algorithm makes lens a fast, accurate and stable auto-focusing.
4.Support automatic PTZ auto-flip function and easy to install.
5.Support 255 preset positions (the remote controller is set to 10preset positions).
6.HDMI, SDI, USB3.0 and LAN ports for video output. Both video and audio can be output from HDMI, SDI, LAN, USB3.0 at the same time. LAN interface supports POE power supply. The transmission distance of SDI under 1080p60 is 100 meters.
7.Supports both main and sub-code streams output simultaneously; support YUY2, MJPEG, H.264, NV12, H.265 video encoding format.

Relate series,click for more info

Specification

Model	Z1301-05	Z1301-12	Z1301-20	Z1301-30
Camera Parameter
Optical Zoom	05X f＝3.1～15.5mm	12X f＝3.9～46.8mm	20X f＝5.2～98mm	30X f＝4.3～129mm
Sensor	1/2.8 inch high quality HD CMOS sensor
Effective Pixels	16: 9, 2.07 megapixel
Video Format	HDMI/SDI video format 1080P60/50/30/25, 1080I60/50, 720P60/50, 1080P59.94, 1080I59.94, 1080P29.97, 720P59.94, 720P29.97 USB3.0 interface video format Main Stream – YUY2/MJPEG/NV12/H.264/H.265: 1920×1080P30,1280×720P30,1024×576P30,960×540P30,800×448P30,720×480P30,640×360P30, 640×480P30,320×176P30 Sub Stream – YUY2/NV12: 640×360P30,640×480P30,320×176P30 MJPEG/H.264/H.265: 1920×1080P30,1280×720P30, 1024×576P30,960×540P30,800×448P30,720×480P30,640×360P30, 640×480P30,320×176P30
View Angle	20°（tele） 84°（wide）	6.3°（tele） 72.5°（wide）	3.2°（tele） 56°（wide）	2.34°（tele） 65°（wide）
AV	F1.8 – F2.8	F1.8 – F2.4	F1.5 – F3.0	F1.6 – F4.7
Minimum Illumination	0.5Lux (F1.8, AGC ON)
DNR	2D & 3D DNR
White Balance	Auto / Manual/ One Push/ Specify color temperature
Focus/Aperture/ Electronic Shutter	Auto/Manual/One Push
Exposure Mode	Auto/Manual/Shutter priority/Aperture priority/Brightness priority
Aperture	F1.8 ～ F11 CLOSE
Shutter Speed	1/25～1/10000
BLC	ON/OFF
DRC	OFF/ Dynamic level adjustment
Video Adjustment	Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
SNR	≥50dB
Input/Output Interface
Video Interfaces	Z1301-05/12/20/30-SU Model: HDMI, SDI, LAN(POE), RS232-IN/OUT, RS422 & RS485, A-IN, USB3.0(type B compatible with USB2.0), DC12V, power switch Z1301-05/12/20/30-U3 Model: HDMI,LAN(POE), RS232-IN/OUT, RS422 & RS485, A-IN, USB3.0(type B compatible with USB2.0), DC12V, power switch
Video Stream	Dual stream output
Video Compression Format	LAN Interface: H.265, H.264, dual stream output USB3.0 Interface: Main stream supports YUY2/MJPEG/H.264/NV12/H.265; Sub stream supports YUY2/MJPEG/H.264/NV12
Audio Input Interface	Double track 3.5mm linear input
Audio Output Interface	HDMI, SDI, LAN, USB3.0
Audio Compression Format	AAC
Network Protocol	RTSP, RTMP, ONVIF, GB/T28181, VISCA OVER IP, IP VISCA, RTMPS, SRT, Support remote upgrade, reboot and reset
Control Interface	RS232-IN, RS232-OUT, RS422 (compatible with RS485)
Control Protocol	VISCA/Pelco-D/Pelco-P, Baud Rate: 115200/38400/9600/4800/2400bps
Power Interface	HEC3800 outlet (DC12V)
Input Voltage	DC12V±10%
Input Electric Current	Maximum: 1A
Power Consumption	Maximum: 12W
PTZ Parameter
Pan/Tilt Rotation	±170°, -30°～+90°
Pan Control Speed	0.1 -100°/sec
Tilt Control Speed	0.1-45°/sec
Preset Speed	Pan: 100°/sec, Tilt: 45°/sec
Preset Number	255 presets (10 presets by remote controller)
Other Parameter
Stored Temperature	-10℃~+60℃
Storage Humidity	20%~95%
Working Temperature	-10℃~+50℃
Working Humidity	20%~80%
Dimension	181mmX115mmX149mm
Weight	1.15KG
Accessory
Package	Power Supply, RS232 control cable, USB3.0 connection cable, Remote Controller, User Manual
Optional Accessories	Ceiling / Wall Mount (Extra Cost)
