Z1000 Full HD Box Camera
Z1000 Full HD Box Camera
Z1000 Full HD Box Camera

Z1000 Full HD Box Camera

Want create site? Find Free WordPress Themes and plugins. The Z1000 series camera offers perfect functions, superior performance and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sens

Video Format : 1080P60/50/30/25/59.94/29.97,1080I60/50/59.94,720P60/50/30/25 /59.94/29.97

WDR : OFF/ Dynamic level adjustment

Video Compression Format : H.264, H.265

Video Interfaces : 3G-SDI

Phone:+86 18926159746 020-36164006
DESCRIPTION FEATURES

The Z1000 series camera offers perfect functions, superior performance and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition. It supports H.264/H.264+ encoding which makes motion video fluent and clear even under low bandwidth conditions.



Key Features



  • Superb High-definition Image

UV1201 employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920×1080 with frame rate up to 60fps.

  • Low Noise and High SNR

Low Noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.

  • Multi-Format Video Outputs

Multiple interfaces include: HDMI, 3G-SDI and LAN. The 3G-SDI is available for 100m transmission at 1080p60 format.

  • Multiple Video Compression

Support H.264/H.264+ video compression; Support compression of resolution up to 1920×1080 with frame up to 60fps and 2 channels 1920x1080p with 30fps compression.

  • Multiple Network Protocol

Supports ONVIF, GB/T28181, RTSP, RTMP protocols; RTMP push mode, easy to be connected to streaming server (Wowza, FMS); RTP multicast mode;

  • Multi-Applications

Tele-education, Lecture Capture, Webcasting, Videoconferencing, Tele-training, Tele-medicine, Interrogation and Emergency command systems.

Model Z1000
Camera Parameter
Sensor 1/2.8 inch high quality HD CMOS sensor
Effective Pixels 16: 9, 2.07 megapixel
Video Format 1080P60/50/30/25/59.94/29.97,1080I60/50/59.94,720P60/50/30/25 /59.94/29.97
 Aperture Auto, DC drive
Minimum Illumination 0.5Lux (F1.8, AGC ON)
DNR 2D & 3D DNR
White Balance Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K
Focus Auto/Manual
Aperture Auto/Manual
Electronic Shutter Auto/Manual
BLC ON/OFF
WDR OFF/ Dynamic level adjustment
Video adjustment Brightness,Color,Saturation,Contrast,Sharpness,B/W mode,Gamma curve
SNR >55dB

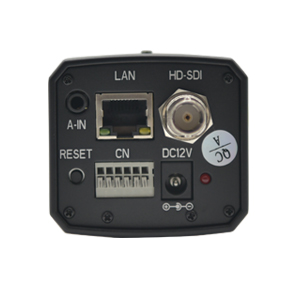

Input/Output Interface
Video Interfaces 3G-SDI
Image Code Stream Dual stream output
Video Compression Format H.264, H.265
Control Interface RS485
Control Buttons Up, Down, Left, Right, Ok buttons to call OSD settings
HD IP Interface 100M IP port (10/100BASE-TX)
Network Protocol RTSP/RTMP, ONVIF, GB/T28181
Power Interface DC12V
Other Parameter
Power Adaptor AC110V-AC220V to DC12V/1A, PoE
Input Voltage DC12V±10%
Input Current 400mA(Max)
Consumption 4.8W (Max)
Store Temperature -10℃~+60℃
Store Humidity 20% – 95%
Working Temperature -10℃~+50℃
Working Humidity 20%–80%
Dimension 113.4mm×62.6mm×59.1mm
Weight 0.5KG
Application Indoor
Remote Operation (IP) Remote Upgrade, Reboot and Reset
Accessory Power supply, User Manual, Brackets(optional)
