 Product Description

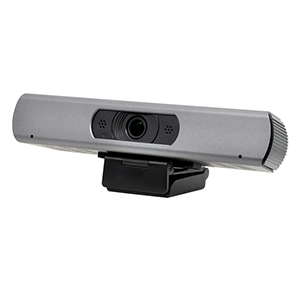

V31U is a professional camera that supports FHD 1080P image capture. The product supports 1 USB 2.0 output. 120 °wide angle field and strong compatibility. Easy to use. Widely used in webcasts, video conferences, Tele-Education and training, Tele-Surgery, game streaming, interviews, roadshows and so on. 120 °fixed focus lens and 84 °auto focus lens for your optional

Key Features
◆ 1080P Full HD & Ultra Wide Angle
1080P full hd with ultra-high wide-angle, which could provide a maximum of 1080P @ 30fps / 25fps image output, and it’s also backward compatible with resolutions such as 720p. Wide FOV and horizontal FOV up to 120 °
◆ USB 2.0
Multifunction USB 2.0 interface with power supply, video and audio. It also support 2 USB video signal sources, 1 audio source at the same time.
◆ Built-in microphone
Not only built-in microphone array to capture more realistic sound from all angles within 6 meters, making your sound sound natural and clear besed on our noise reduction chip. But also provides microphone in interface for external audio
◆ Low illumination
The Starlight CMOS image sensor with 55 dB high signal noise ratio can effectively reduce image noise in low-light conditions. At the same time, 2D and 3D noise reduction algorithms could greatly reduce image noise. The screen still keep clean and clear even in ultra-low light conditions.
◆Power Supply
Use fixed wired power cable to connect power supply, more secure and stable
◆ Easy installation

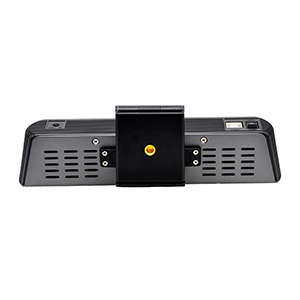

Equipped with a damping rotating shaft bracket as standard, it is suitable for mainstream monitors on the market, and it can be installed stably and reliably.
Relate series,click for more info



                        Product Specification


			| model |
			V31U FHD USB Camera |


			| sensor |
			1/2.7”, CMOS, Effective Pixel: 2.07M |


			| Input & Output |
			1xUSB 2.0: Type A |


			| Lens feature |
			Resolution |
			1080P@30fps/25fps, backward compatible with 720P etc. |


			| scanning method |
			Progressive |


			| Lens options |
			(stand)Lens 1:focus: f = 3.1mm, horizontal FOV: 120°

			(optional)Lens 2:focus: f = 3.4mm, horizontal FOV: 90°
			(optional)Lens 3:focus: f = 3.5mm, horizontal FOV: 84°
			 |


			| Lens mount |
			M12 |


			| auto focus |
			Support(only 84°lens) |


			| Minimum illumination |
			0.5Lux@(F1.8,AGC ON) |


			| shutter |
			1/30s~1/10000s |


			| White balance |
			Auto/manual/VAR |


			| BLC |
			Support |


			| Digital noise reduction |
			2D&3D digital noise reduction |


			| USB feature |
			Color System / Compression |
			H.264/MJPEG/YUY2 |


			| Operate System |
			Windows7 (Only supports 1080p and under 1080p)

			Windows 8.1,
			Windows 10 or macOSTM 10.10 or GoogleTM ChromebookTM Version 29.0.1547.70 or Linux (need support UVC)
			 |


			| Hardware requirements |
			2.4 GHz Intel® Core 2 Duo processor or higher

			2 GB RAM or more
			USB 2.0 port
			 |


			| Video format |
			1080p@30fps/25fps, 720p@30f ps/25fps, 960x540p@30fps/25fps, 640x360p@30 fps/25fps |


			| USB video communication protocol |
			UVC 1.0 |


			| General specification |
			Electrical parameters |
			5V(USB power supply);270mA ;1.4W |


			| Power switch |
			Support |


			| Operating temperature |
			-10℃~40℃ |


			| Storage Temperature |
			-40℃~60℃ |


			| Power Consumption |
			MTBF 30000H |


			| Size |
			118mm*37.2mm*30.8mm |


			| Net Weight |
			0.093kg |


			| Our company reserves the right to adjust product parameters. If you have any questions, please contact us to check |
