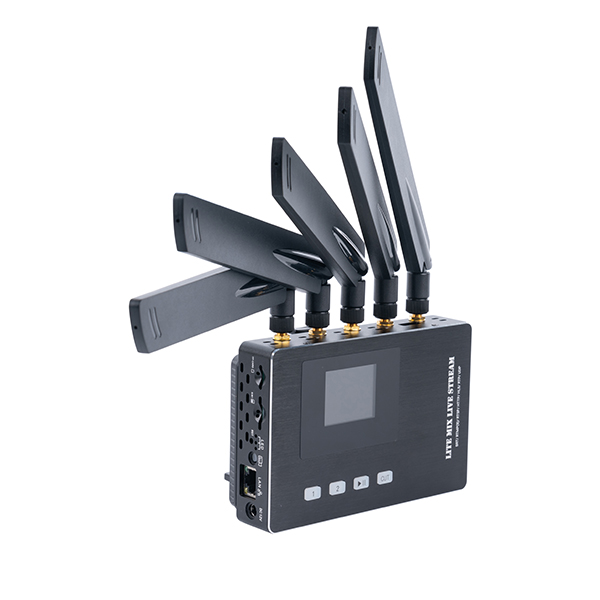

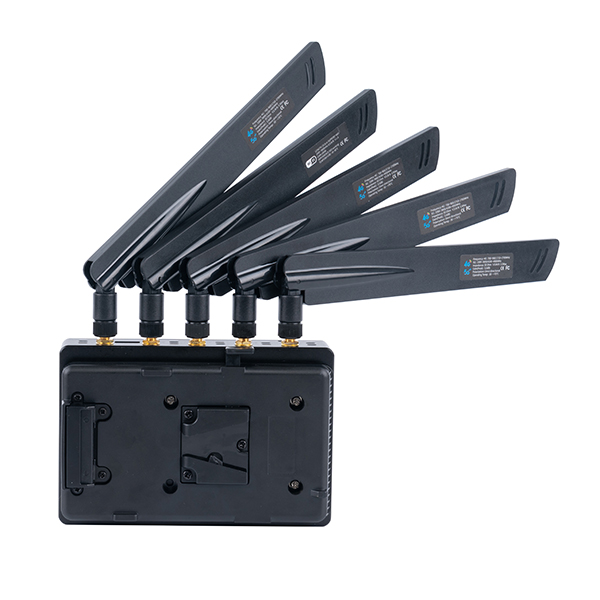

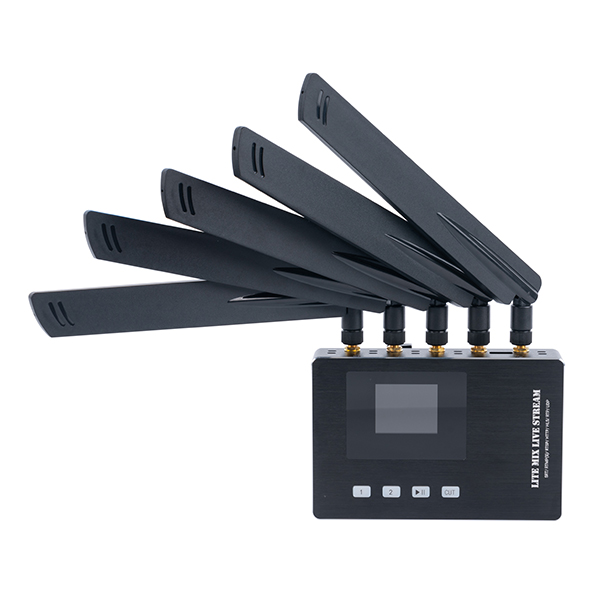

F2S5 5G Live Stream Encoder Swither
F2S5 5G Live Stream Encoder Swither
F2S5 5G Live Stream Encoder Swither
F2S5 5G Live Stream Encoder Swither
F2S5 5G Live Stream Encoder Swither
F2S5 5G Live Stream Encoder Swither

F2S5 5G Live Stream Encoder Swither

Want create site? Find Free WordPress Themes and plugins.        1 channel HDMI input,1 channel HDMI loop output 1channel LINE-IN audio.1 channel Audio output 2 inch display screen(Status information display: IP informat

Protocol : HTTP, SRT,RTSP, RTP, TCP, RTMP, RTMPS, HLS, UDP multicast, unicast

Coding standard : H.265/H.264

Encoded size : Up to 3840*2160 30, 720P 120FPS

Video bit rate : 5-60 fps

:

Phone:+86 18926159746 020-36164006
DESCRIPTION FEATURES









1 channel HDMI input,1 channel HDMI loop output 1channel LINE-IN audio.1 channel Audio output

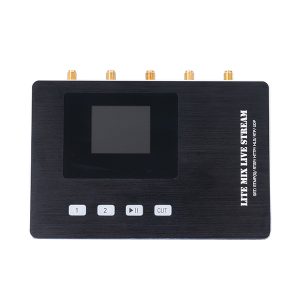

2 inch display screen(Status information display: IP information,live stream status“

Support TF Card recoding(maximum 128G)

Support button control(for switch)

Support 2 channels IP Streams Decoding

Support Mixing:1 channel HDMI+2 ip decoding play together.

Support PIP

3 streams output(HTTP UDP,HLS,RTSP etc). Maximum support 8 RTMP/RTMPS streams working at the same time.

H.265/ H.264 format, Audio: MP3, AAC, G.711 format.
Configuration could be freely adjusted according to the need.
Support SRT / HTTP / RTSP / RTP/ TCP / RTMP / RTMPS / UDP / ONVIF / HLS/ P2P / GB28181/ protocols.
Support IOS/Andriod APP
Support P2P(Haiwei Protocol)
Support remote control WEB

F2S5G User manual

Product model F2S5 5G/4G+ LAN+ WiFi+ battery HDMI Encoder Swither
Input 1Channel HDMI input, 1 Channel line in audio
Output 1 channel IP signal output,HDMI loop out,Audio output
TF card 128G(maximum )
Video Input resolution Up to 1920x1080p 60FPS, standard HDMI resolution
Coding standard H.265/ H.264
Coding level H.265 MAIN PROFILE
H.264 BASELINE PROFILE
H.264 MAIN PROFILE
H.264 HIGH PROFILE
Encoded size 640*360~1920*1080 60fps(Maximum)
Video bit rate Rate control: CBR/VBR 16KBIT/S~50MBIT/S
Video frame rate 5- 60 fps
OSD Text, Image
Audio Input selection 1 channel embedded audio hdmi, 1 channel 3.5MM independent audio, support audio gain
Audio coding AAC/ MP3/ G.711
Audio bit rate 64Kb/s~384Kb/s
Sampling rate 32000、44100,48000 etc
IP output 1 RJ 100M / 1000M adaptive Ethernet port, dual-stream( H.265/264 TS stream)
System Network protocol SRT,HTTP, RTSP, RTMP,RTMPS, ONVIF, HLS, UDP ,multicast, unicast,P2P,GB28181
Configuration management User interface, remote upgrade, Andriod APP, multi-one management platform
  Power supply 12V~2A
power consumption 5W
Size 146mm * 95mm * 35mm(L*W*H)
Operating temperature -20℃+ 60℃
Working humidity <90%,Non-condensing

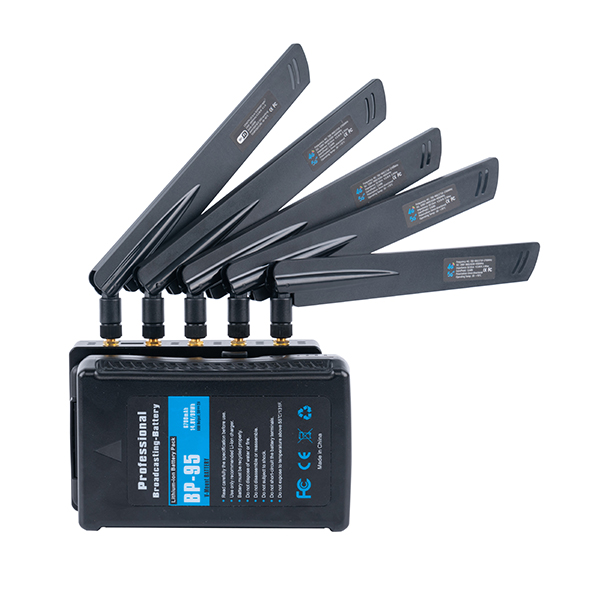

Polymerized Lithium Battery BP-95 14.8V 6400 mAh 95W (Working time:5-6hours)
Weight 0.8KG
Haiwei reserves the right to adjust the product parameters, if you have any questions please contact us to check
