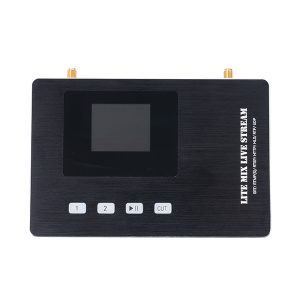

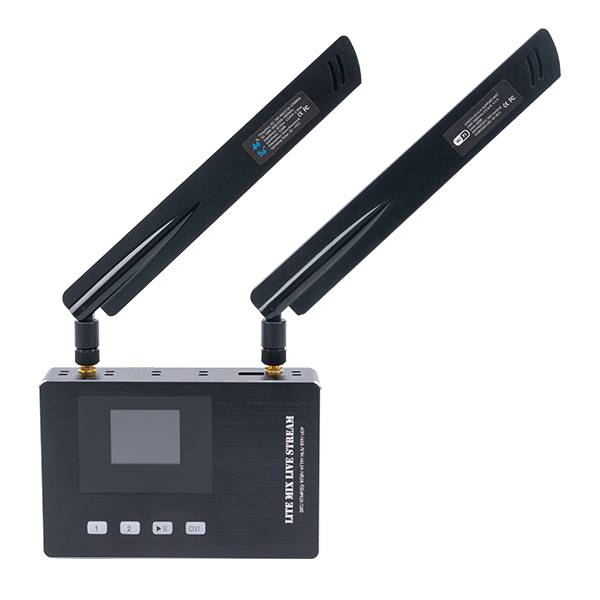

F2S 4G/3G Live Stream Encoder Swither
F2S 4G/3G Live Stream Encoder Swither
F2S 4G/3G Live Stream Encoder Swither
F2S 4G/3G Live Stream Encoder Swither

F2S 4G/3G Live Stream Encoder Swither

Want create site? Find Free WordPress Themes and plugins.     Key features HDMI to 4G/ 3G/ WIFI/ LAN. Standard hot shoe Resolution: up to 1920x1080p 60 FPS Supports WINDOWS ,LINUX,MAC OS Support SRT/ RTSP/ RTP/ RTMP/ R

Protocol : HTTP, SRT,RTSP, RTP, TCP, RTMP, RTMPS, HLS, UDP multicast, unicast

Coding standard : H.265/H.264

Encoded size : Up to 3840*2160 30, 720P 120FPS

Video bit rate : 5-60 fps

:

Phone:+86 18926159746 020-36164006
DESCRIPTION FEATURES





Key features

  1. HDMI to 4G/ 3G/ WIFI/ LAN.
  2. Standard hot shoe
  3. Resolution: up to 1920x1080p 60 FPS
  4. Supports WINDOWS ,LINUX,MAC OS
  5. Support SRT/ RTSP/ RTP/ RTMP/ RTMPS/HTTP/ ONVIF/ HLS/ / P2P / GB28181 / UDP Unicast and Multicast protocol
  6. Support Main TS stream and the sub TS stream  use in different network protocols for transmission
  7. Encoding level: 1, 2, 3, 4 and 5 (the higher the level, the larger of the code flow fluctuation ratio )
  8. Coding Standard: Base line profile/ main profile/high profile, H.265 main profile:
  9. Audio: MP3, AAC, G.711, sampling rate: 32000,44100, etc, encoded audio bit rate: 48K, 64K, 96K, 128K, 160K, 192K, 256K etc
  10. Video bitrate Control: CBR / VBR 16KBIT / S ~ 50MBIT / S
  11. Video packaging: A mode: FFMPEG, B mode: VLC
  12. Transmission: TCP, UDP, 100M/ 1000M (RJ45 Duplex network port)
  13. Support WEB access in Chinese/ English, passwords change, WAN remote management (WEB)
  14. Support Text/ image OSD, images superimposing.
  15. Adjustable coordinates: 1920×1080; the font size: 8 to 72.
  16. Supports automatically obtain IP (DHCP), support One-key recovery, upgrade and remote maintenance.
  17. Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
  18. Support build-in or external audio input, support left and right sound channel, Support audio gain, turn volume individually.
  19. Support encoding without video signal;
  20. Take effect immediately when applied the settings, don’t need to restart.
  21. Support one-key recovery to default setting.
  22. Low power consumption design,
  23. Polymerized Lithium Battery 8V 6400 mAh



F2S5-4G User manual

Product model F2S 4G/3G+ LAN+ WiFi+ battery HDMI Encoder Swither
Input 1Channel HDMI input, 1 Channel line in audio
Output 1 channel IP signal output,HDMI loop out,Audio output
TF card 128G(maximum )
Video Input resolution Up to 1920x1080p 60FPS, standard HDMI resolution
Coding standard H.265/ H.264
Coding level H.265 MAIN PROFILE
H.264 BASELINE PROFILE
H.264 MAIN PROFILE
H.264 HIGH PROFILE
Encoded size 640*360~1920*1080 60fps(Maximum)
Video bit rate Rate control: CBR/VBR 16KBIT/S~50MBIT/S
Video frame rate 5- 60 fps
OSD Text, Image
Audio Input selection 1 channel embedded audio hdmi, 1 channel 3.5MM independent audio, support audio gain
Audio coding AAC/ MP3/ G.711
Audio bit rate 64Kb/s~384Kb/s
Sampling rate 32000、44100,48000 etc
IP output 1 RJ 100M / 1000M adaptive Ethernet port, dual-stream( H.265/264 TS stream)
System Network protocol SRT,HTTP, RTSP, RTMP,RTMPS, ONVIF, HLS, UDP ,multicast, unicast,P2P,GB28181
Configuration management User interface, remote upgrade, Andriod APP, multi-one management platform
  Power supply 12V~2A
power consumption 5W
Size 146mm * 95mm * 35mm(L*W*H)
Operating temperature -20℃+ 60℃
Working humidity <90%,Non-condensing

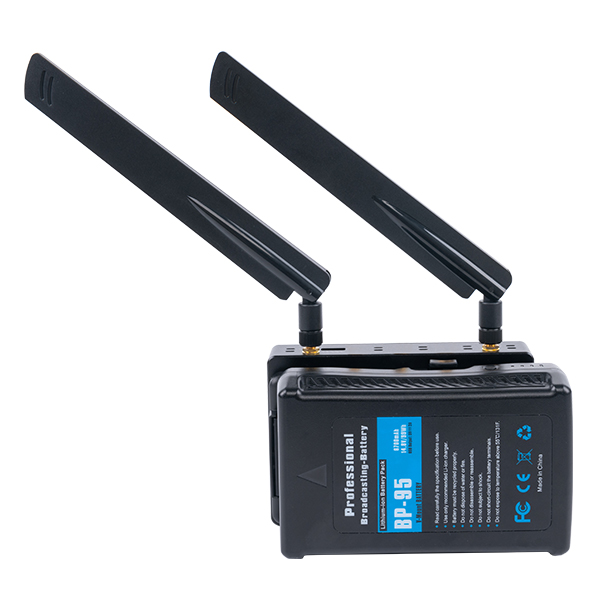

Polymerized Lithium Battery BP-95 14.8V 6400 mAh 95W (Working time:5-6hours)
Weight 0.8KG
Haiwei reserves the right to adjust the product parameters, if you have any questions please contact us to check
