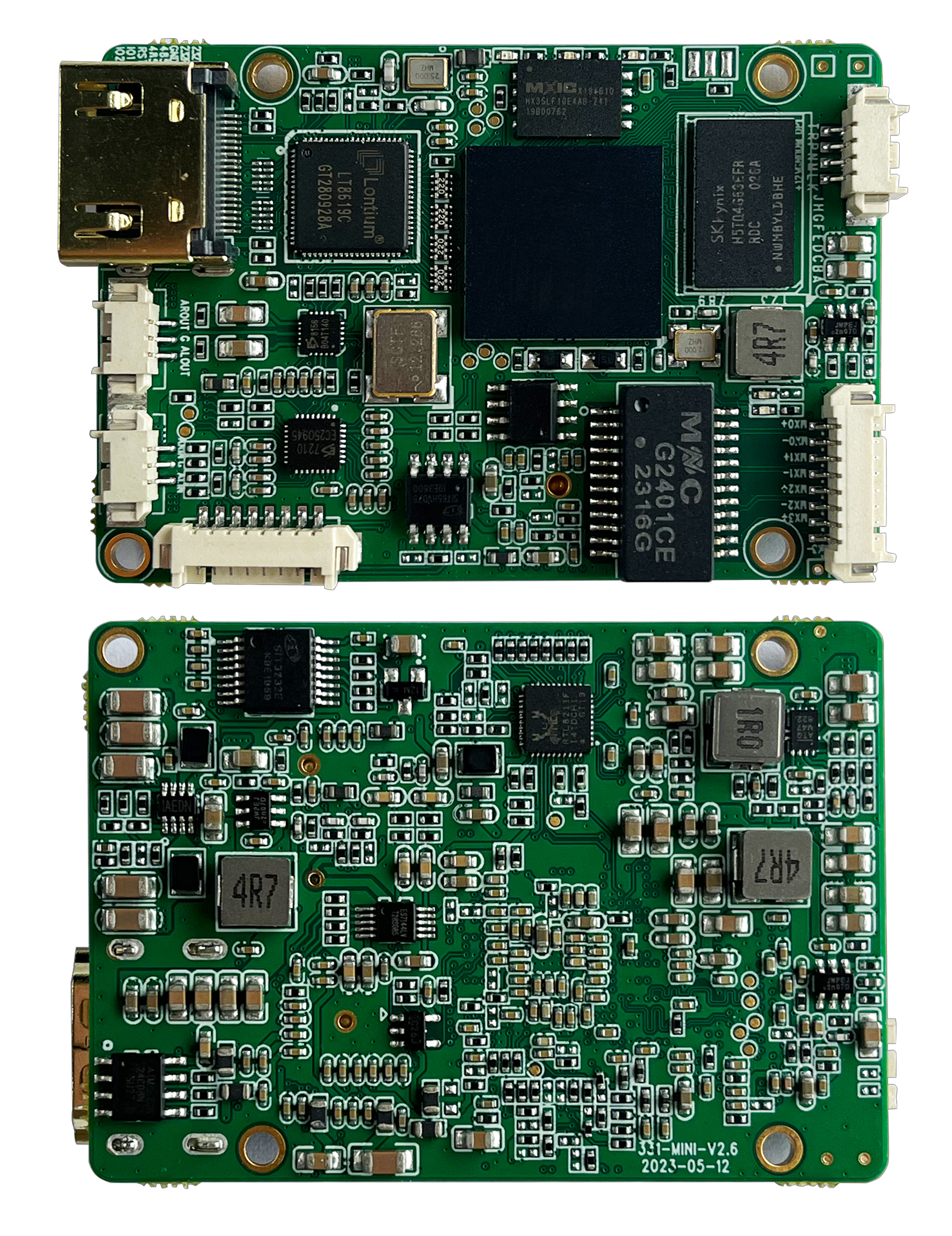

K5N HEVC Mini HDMI Encoder

1. Resolution:1920x1080p/1920x1080i/1280x720p/720*576i/720*576p/640*480i (customizable)
2. Supports WINDOWS ,LINUX and MAC OS
3. Support SRT/ RTSP/ RTP/ RTMP/ RTMPS/ HTTP/ ONVIF/ HLS/ UDP unicast and multicast protocol
4. Support Main TS stream and the sub TS stream use in different protocol.
5. Encoding level: 1, 2, 3, 4 and 5 (the higher the level, the larger of the code flow fluctuation ratio )
6. Coding Standard: Base line profile/ main profile/high profile, H.265 main profile:
7. Audio: MP3, AAC, G.711, sampling rate: 32000,44100, etc, encoded audio bit rate: 48K, 64K, 96K, 128K, 160K, 192K, 256K
8. Video bitrate Control: CBR / VBR 16KBIT / S ~ 20MBIT / S
9. Video packaging: A mode: FFMPEG, B mode: VLC
10. Transmission: TCP, UDP, 100M for configuration. 1000M for transmission (RJ45 Duplex network port)
11. English WEB, change passwords of the encoder, remotely configure (WEB)
12. Support Text/ image OSD, images superimposing.

Adjustable coordinates; the font size: 8 to 72.

13. Supports automatically obtain IP (DHCP), support One-key recovery, upgrade and remote maintenance.
14. Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
15. Support build-in or external audio input, support left and right sound channel, Support audio gain, turn volume individually.
16. Support encoding without video signal;
17. Take effect immediately when applied the settings, don’t need to restart.
18. Support one-key recovery to default setting.
19. Low power consumption design.
