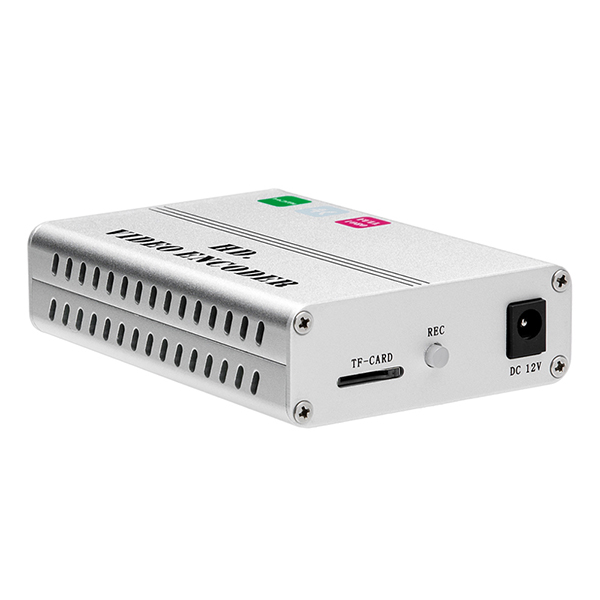

K1S 4K HDMI ENCODER WITH HDMI LOOP OUT

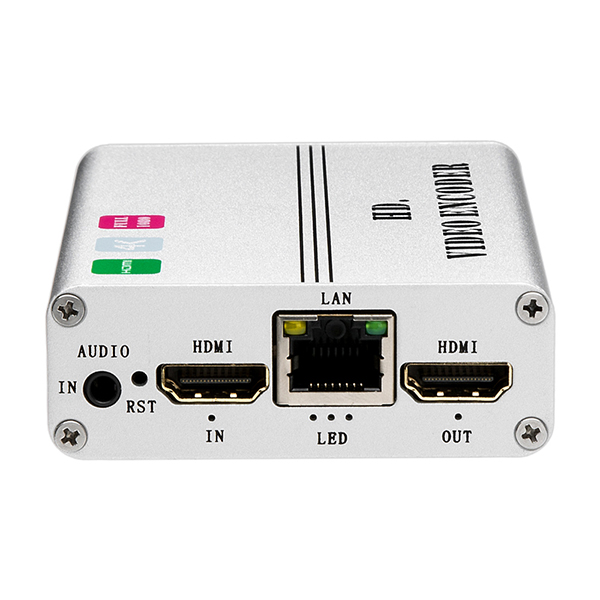

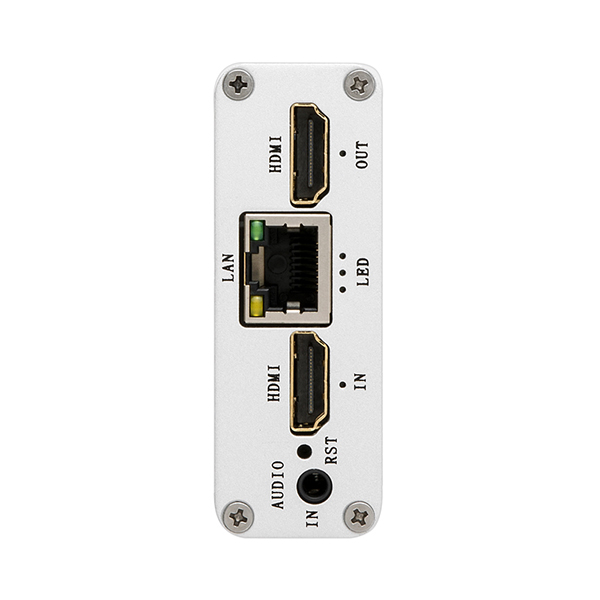

1-channel up to 4K-3840*2160 HDMI input, 1channel LINE-IN audio.

Dual streams output. H.265/ H.264 format, Audio: MP3, AAC, G.711 format.

Configuration could be freely adjusted according to the need.

Smart encode mode: normal, smooth bit, low latency, B frame.-

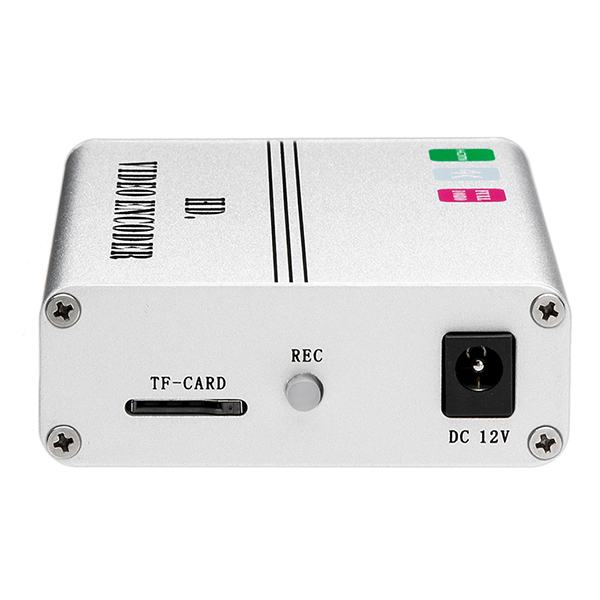

SD cards for storage

Support SRT/ HTTP / RTSP / RTP/ TCP / RTMP /RTMPS/  UDP / ONVIF / HLS protocols.

Red indicator: power. Yellow: Streaming status. Green: Network

Key features

1. Resolution:3840*2160/2560*1440/2048*1152/1920x1080p/1920x1080i/1280x720p/720*576i/720*576p/640*480i (customized)
2. Smart encode mode: normal, smooth bit, low latency, B frame.
3. SD cards for storage.
4. Support SRT/RTSP/ RTP/ RTMP/ RTMPS/HTTP/ ONVIF/ HLS/ UDP unicast and multicast protocol
5. Support Main TS stream and the sub TS stream use in different protocol.
6. Encoding level: 1, 2, 3, 4 and 5 (the higher the level, the larger of the code flow fluctuation ratio)
7. Coding Standard: Base line profile/ main profile/high profile, H.265 main profile.
8. Audio: MP3, AAC, G.711, sampling rate: 32000,44100, etc, encoded audio bit rate: 48K, 64K, 96K, 128K, 160K, 192K, 256K.
9. Video bitrate Control: CBR / VBR 16KBIT / S ~ 50MBIT / S
10. Video packaging: A mode: FFMPEG, B mode: VLC
11. Transmission: TCP, UDP, gigabit Ethernet port.
12. Chinese/ English WEB, change passwords of the encoder, remotely configure (WEB)
13. Support Text/ image OSD, images superimposing.
14. Supports automatically obtain IP (DHCP), support One-key recovery, upgrade and remote maintenance.
15. Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
16. Support build-in or external audio input, support left and right sound channel, Support audio gain, turn volume individually.
17. Support encoding without video signal;
18. Take effect immediately when applied the settings, don’t need to restart.
19. Support one-key recovery to default setting.

Specification
