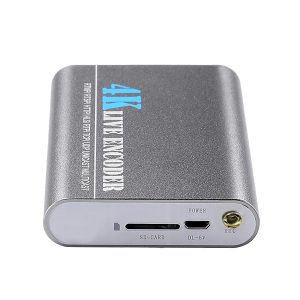

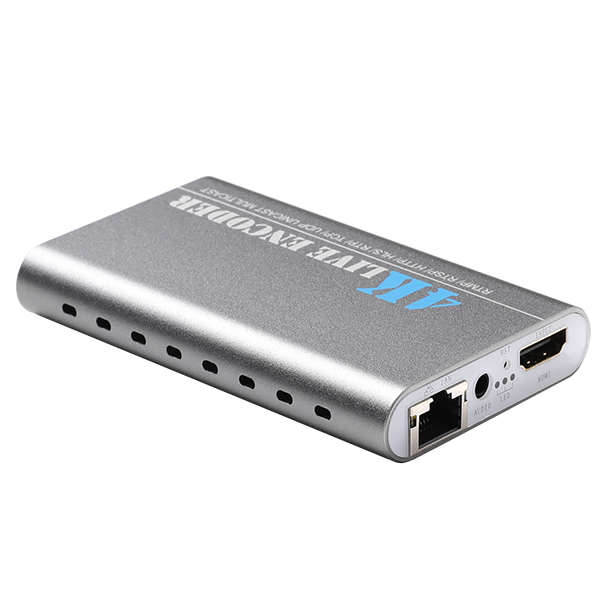

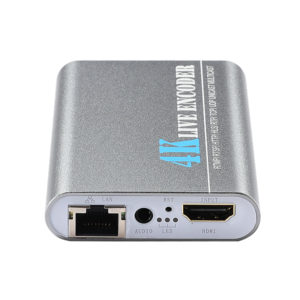

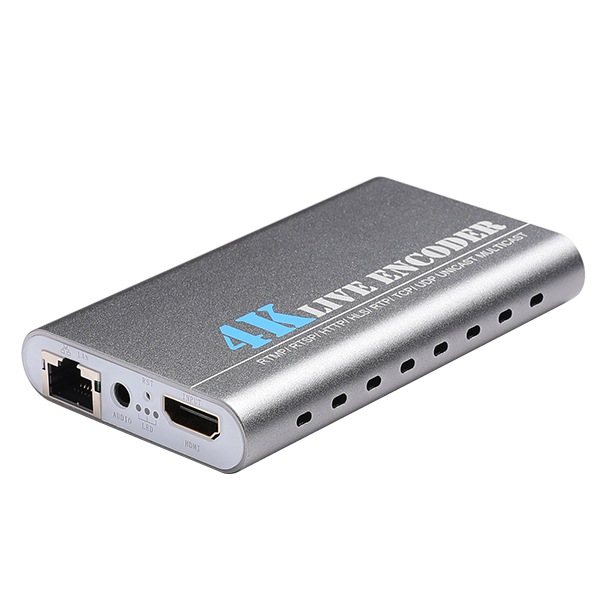

K1P HEVC 4K HDMI Encoder With P2P
K1P HEVC 4K HDMI Encoder With P2P
K1P HEVC 4K HDMI Encoder With P2P
K1P HEVC 4K HDMI Encoder With P2P

K1P HEVC 4K HDMI Encoder With P2P

Want create site? Find Free WordPress Themes and plugins.   1-channel up to 4K-3840*2160 HDMI input, 1channel LINE-IN audio. Dual streams output. H.265/ H.264 format, Audio: MP3, AAC, G.711 format. Configuration could be freel

Protocol : SRT,HTTP, RTSP, RTP, TCP, RTMP,RTMPS HLS, UDP multicast, unicast

Coding standard : H.265/H.264

Encoded size : Up to 3840*2160 30, 1080p 60fps

Video bit rate : 5-60 fps

Phone:+86 18926159746 020-36164006
DESCRIPTION FEATURES



1-channel up to 4K-3840*2160 HDMI input, 1channel LINE-IN audio.

Dual streams output. H.265/ H.264 format, Audio: MP3, AAC, G.711 format.

Configuration could be freely adjusted according to the need.

Smart encode mode: normal, smooth bit, low latency, B frame.

SD cards for storage

Support SRT/HTTP / RTSP / RTP/ TCP / RTMP / RTMPS UDP / ONVIF / HLS protocols.

Red indicator: power. Yellow: Streaming status. Green: Network



APP  Management : IOS/Andriod ,Support P2P

Andriod Link:  LiveX   IOS APP Store:  LiveX



Key features

  1. Resolution:3840*2160/2560*1440/2048*1152/1920x1080p/1920x1080i/1280x720p/720*576i/720*576p/640*480i (customized)
  2. Smart encode mode: normal, smooth bit, low latency, B frame.
  3. SD cards for storage.
  4. Support SRT/RTSP/ RTP/ RTMP/ RTMPS/HTTP/ ONVIF/ HLS/ UDP unicast and multicast protocol
  5. Support Main TS stream and the sub TS stream use in different protocol.
  6. Encoding level: 1, 2, 3, 4 and 5 (the higher the level, the larger of the code flow fluctuation ratio)
  7. Coding Standard: Base line profile/ main profile/high profile, H.265 main profile.
  8. Audio: MP3, AAC, G.711, sampling rate: 32000,44100, etc, encoded audio bit rate: 48K, 64K, 96K, 128K, 160K, 192K, 256K.
  9. Video bitrate Control: CBR / VBR 16KBIT / S ~ 50MBIT / S
  10. Video packaging: A mode: FFMPEG, B mode: VLC
  11. Transmission: TCP, UDP, gigabit Ethernet port.
  12. Chinese/ English WEB, change passwords of the encoder, remotely configure (WEB)
  13. Support Text/ image OSD, images superimposing.
  14. Supports automatically obtain IP (DHCP), support One-key recovery, upgrade and remote maintenance.
  15. Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
  16. Support build-in or external audio input, support left and right sound channel, Support audio gain, turn volume individually.
  17. Support encoding without video signal;
  18. Take effect immediately when applied the settings, don’t need to restart.
  19. Support one-key recovery to default setting.

Specification

Product model K1P 4K Encoder
Input 1Channel HDMI input, 1 Channel audio input
Output 1 channel IP signal output
Video Input resolution Up to 4K-3840*2160, standard HDMI resolution
Coding standard H.265/ H.264
Coding level H.265 MAIN PROFILE
H.264 BASELINE PROFILE
H.264 MAIN PROFILE
H.264 HIGH PROFILE
Encoded size 640*360~3840*2160(Can customize)
Video bit rate Rate control: CBR/VBR 16KBIT/S~12MBIT/S
Video frame rate 5- 60 fps
OSD Text, Image
Audio Input selection 1 channel embedded hdmi audio , 1 channel 3.5MM independent audio, support audio gain
Audio coding AAC/ MP3/ G.711
Audio bit rate 64Kb/s~384Kb/s
Sampling rate 32000、44100,48000 etc
IP output 1 RJ 100M / 1000M adaptive Ethernet port, dual-bitrate( H.265/264 TS stream)
System Network protocol HTTP, RTSP, RTMP, ONVIF, HLS, UDP multicast, unicast
Configuration management User interface, remote upgrade, Andriod APP, multi-one management platform
  Power supply 12V~2A
power consumption 5W
Size 103mm * 70mm * 25mm(L*W*H)
Operating temperature -20℃+ 60℃
Working humidity <90%,Non-condensing
Weight 0.18KG
Haiwei reserves the right to adjust the product parameters, if you have any questions please contact us to check
