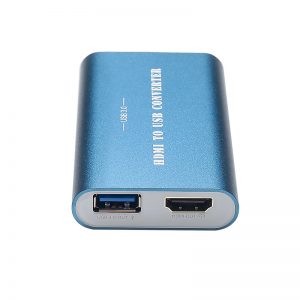

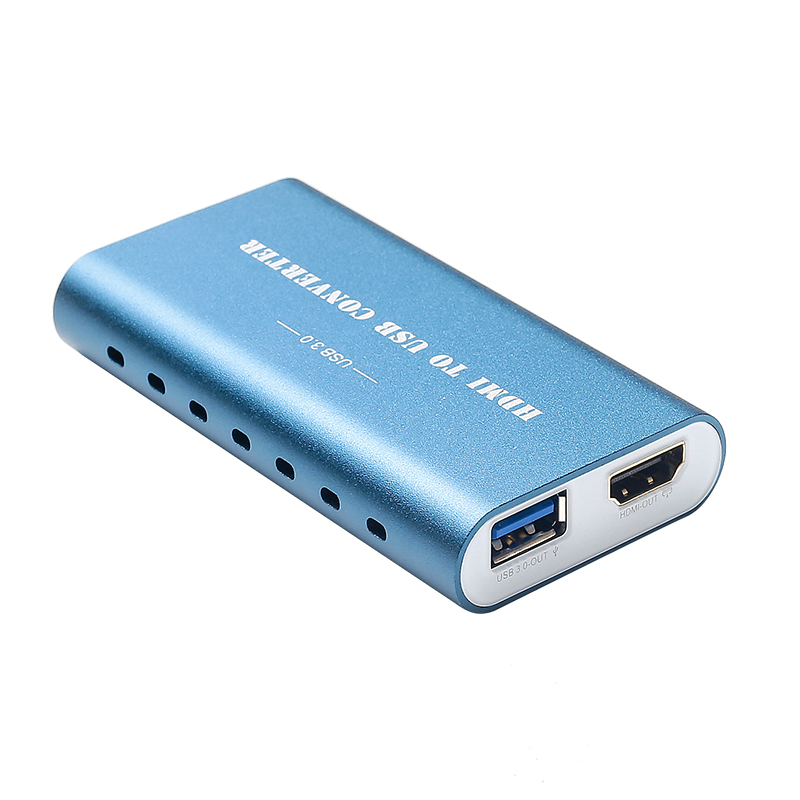

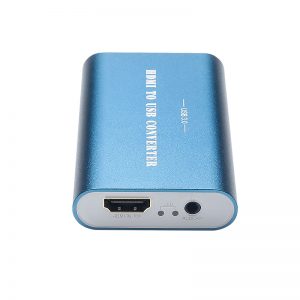

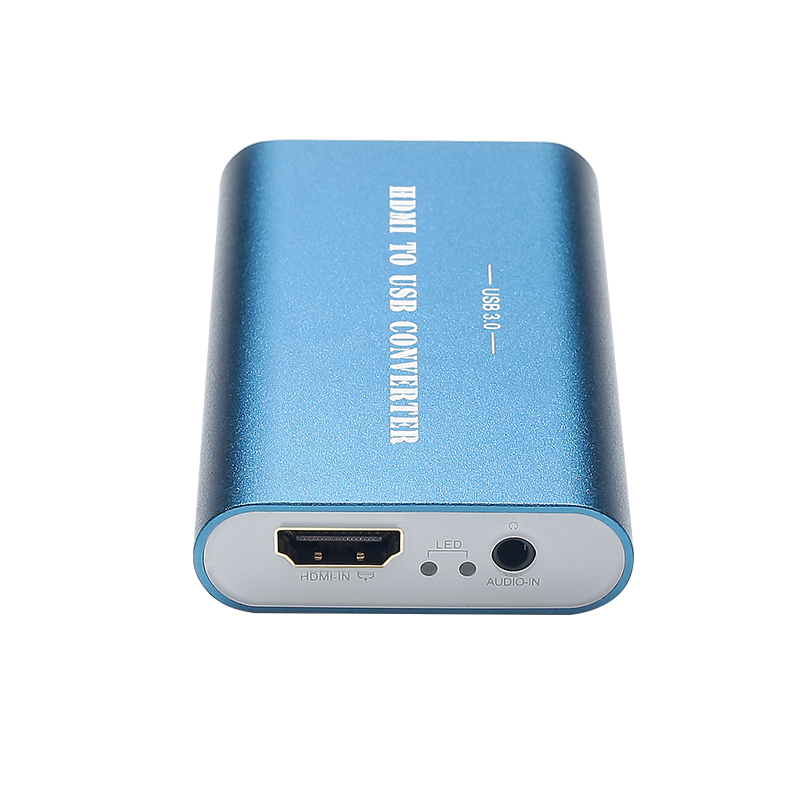

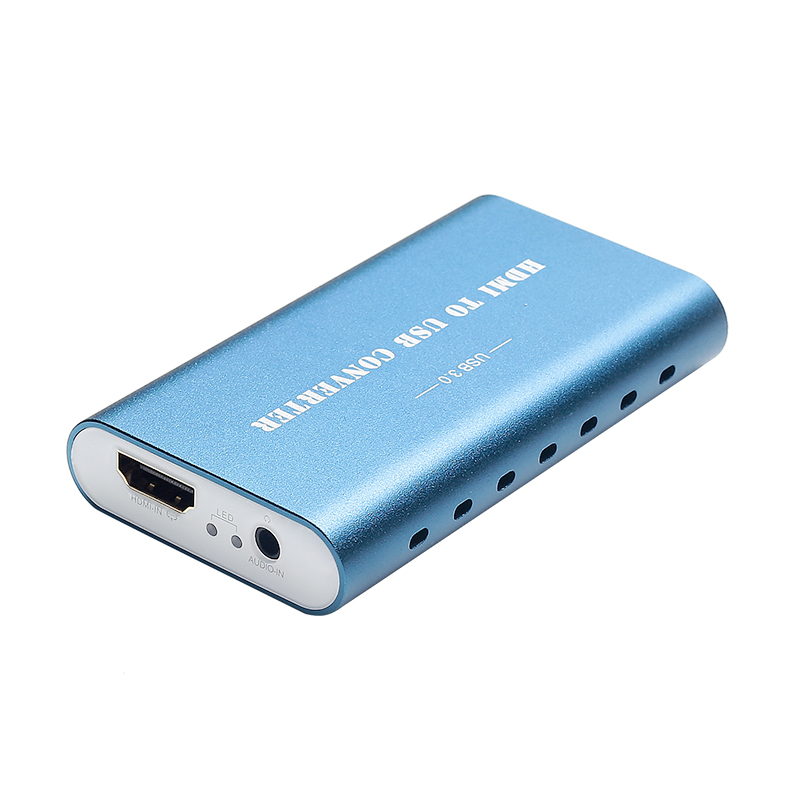

VC3.0- USB3.0 capture box

Want create site? Find Free WordPress Themes and plugins. Product Description VC 3.0 capture box allows capturing FHD HDMI video directly to Windows or Android based devices over USB 3.0 interfac

Protocol : RTMPS, HTTP, RTSP, RTP, TCP, RTMP, HLS, UDP multicast, unicast

Coding standard : H.264,H.265

Encoded size : Up to 1920*1080 60FPS

Video bit rate : 5-60 fps

The most cost-effective hdmi video capture card usb : $40-$70, No MOQ Limited

Phone:+86 18926159746 020-36164006

Product Description

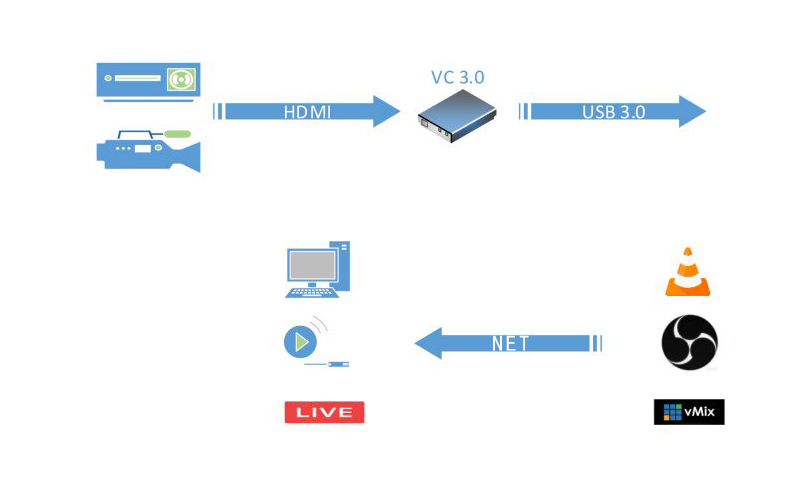

VC 3.0 capture box allows capturing FHD HDMI video directly to Windows or Android based devices over USB 3.0 interface and outputs up to 1920* 1080 60FPS video without any drive requirements.

Dimension

NO	Item	Parameters
1	Size	93mm16mm51mm
2	Net	0.05 kg

Specification

No	Function	Parameters
1	Video	1920*1080
2	Audio	44100
2	Audio	48000
3	Frame	60/fps
4	Color space	YUY2
4	Color space	MJPG
5	Output	640480 800600 1024768 1280720 1280960 12801024 1360768 1400900 1920*1080
6	Hue control	contrast ratio, brightness, tone, saturation
7	Supported system	windows7 windows8 windows10 linux
8	USB2.0	480 Mbps
9	USB2.0	4.8 Gbps
10	Red	Power
11	Blue	A/V states
12	HDMI version	HDMI-1.4
13	Audio Jack	3.5mm
